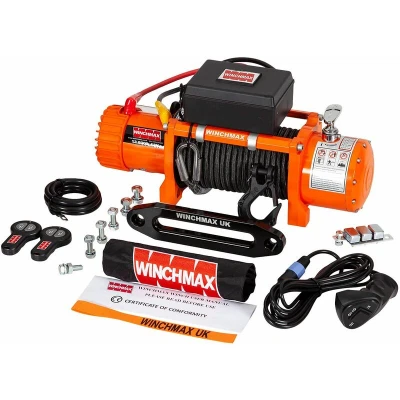

WINCHMAX 13,500lb (6,123kg) Original Orange 12v Electric Winch. 25m x 10mm Armourline Synthetic Rope, 3/8 Inch Tactical Hook..
Featured
|
£ 489.95 |
To Shop
|
|
£ 489.95 |
To Shop
|
Description
ManoMano
General description The 13,500lb (6,123kg) Original Orange 12V Electric Winch is designed for recovery trucks and 4x4 vehicles with a weight capacity of up to 3.5 tons. It features a robust construction and advanced technology, making it an ideal choice for heavy-duty applications. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 12V 6.8hp/5.1kw, series wound Control: Remote Switch with 4.5m lead Gear Train: 3 stage planetary Gear Reduction Ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 64mm (2.5”), Length 224mm (8.82”) Drum Finish: Black, painted Cable: 25m x 10mm Armourline synthetic rope Hook: Tactical clevis hook 3/8 inch, black Fairlead: One-piece billet aluminium hawse fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Winch Finish: Original Orange powder coated Weight (GW): 30kg (88lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3”
General description The 13,500lb (6,123kg) Original Orange 12V Electric Winch is designed for recovery trucks and 4x4 vehicles with a weight capacity of up to 3.5 tons. It features a robust construction and advanced technology, making it an ideal choice for heavy-duty applications. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 12V 6.8hp/5.1kw, series wound Control: Remote Switch with 4.5m lead Gear Train: 3 stage planetary Gear Reduction Ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 64mm (2.5”), Length 224mm (8.82”) Drum Finish: Black, painted Cable: 25m x 10mm Armourline synthetic rope Hook: Tactical clevis hook 3/8 inch, black Fairlead: One-piece billet aluminium hawse fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Winch Finish: Original Orange powder coated Weight (GW): 30kg (88lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm (21.3”
AmazonThe Original Orange 12v Winch Ideal for Recovery Trucks and 4x4's up to 3.5 Tons, Suitable for all Offroad or Recovery Operations Latest Technology Twin Handset Long-range Wireless Remote Controls and Backup Control Lead. Comes with 25m x 10mm Armourline Double Braided Synthetic Rope. Tactical Clevis Hook 3/8” G70 Grade Forged. Safety catch and hand saver Includes a Strong Winchmax Branded Winch Cover to Protect from Water and Road Grime.
