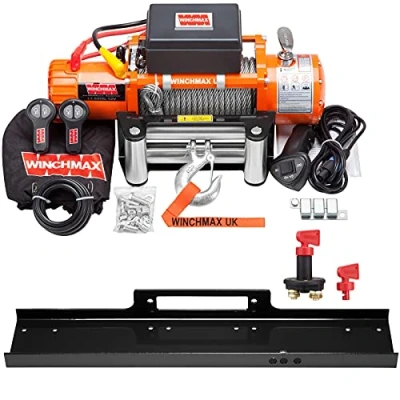

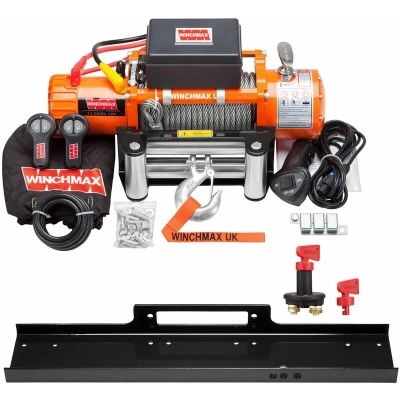

WINCHMAX 13,500lb (6,123kg) Original Orange 12v Electric Winch. 26m x 9.5mm Steel Rope. 3/8 Inch Hook, Flat Bed Mounting Plate and Isolator.

Prices from
437.95

Featured

COMPARE ALL WEBSHOPS (2)

Description

ManoMano General description The 13,500lb (6,123kg) Original Orange 12V Electric Winch is designed for heavy-duty applications, making it ideal for recovery trucks and trailers up to 3.5T. This winch features a robust construction with a powerful electric motor and advanced technology for reliable performance. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 12V 6.8hp/5.1kw, series wound Control: Remote switch with 4.5m lead, in and out Gear train: 3 stage planetary Gear reduction ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum size: Diameter 64mm (2.5”), Length 224mm (8.82”) Drum finish: Black, painted Cable: 26m x 9.5mm galvanized steel wire rope Hook: Clevis hook 3/8 inch, zinc plated Fairlead: 4-Way roller fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Finish: Original Orange powder coated Weight (GW): 40kg (88lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm

Compare webshops (2)

Shop
Price
£ 437.95
£ 437.95
Description (2)
ManoMano

General description The 13,500lb (6,123kg) Original Orange 12V Electric Winch is designed for heavy-duty applications, making it ideal for recovery trucks and trailers up to 3.5T. This winch features a robust construction with a powerful electric motor and advanced technology for reliable performance. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 12V 6.8hp/5.1kw, series wound Control: Remote switch with 4.5m lead, in and out Gear train: 3 stage planetary Gear reduction ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum size: Diameter 64mm (2.5”), Length 224mm (8.82”) Drum finish: Black, painted Cable: 26m x 9.5mm galvanized steel wire rope Hook: Clevis hook 3/8 inch, zinc plated Fairlead: 4-Way roller fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Finish: Original Orange powder coated Weight (GW): 40kg (88lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm

Amazon

The Original Orange 12v Winch Ideal for Recovery Trucks and 4x4's up to 3.5 Tons, Suitable for all Offroad or Recovery Operations Latest Technology Twin Handset Long-range Wireless Remote Controls and Backup Control Lead. Comes with 26m x 9.5mm of Galvanized Steel Wire Rope. 3/8 inch Clevis Hook Grade 70 Forged Steel. Safety Catch and Hand Saver. Zinc Plated For Corrosion Resistance Includes a Strong Winchmax Branded Winch Cover to Protect from Water and Road Grime.


Product specifications

Brand Winchmax
EAN
  • 8438569491328
MPN
  • WM1350012V,WMMP2,WMBATISOTYP1
