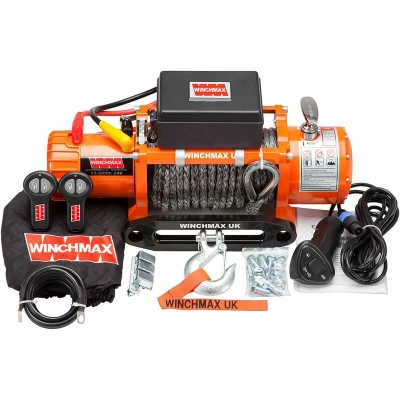

WINCHMAX 13,500lb (6,123kg) Original Orange 24v Electric Winch. 28m x 11mm Dyneema Synthetic Rope. 3/8 Inch Hook.
Featured
|
£ 499.95 |
To Shop
|
|
£ 499.95 |
To Shop
|
Description
ManoMano
General description The 13,500lb (6,123kg) Original Orange 24V Electric Winch is designed for recovery trucks and 4x4 vehicles with a weight capacity of up to 3.5 tons. It features a robust construction and advanced technology, making it an ideal choice for heavy-duty applications. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 24V 6.8hp/5.1kw, series wound Control: Remote switch with a 4.5m lead Gear Train: 3 stage planetary Gear Reduction Ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 63.5mm (2.5”), Length 224mm (8.82”) Drum Finish: Black, painted Cable: 28m x 11mm Dyneema SK75 Synthetic Rope Hook: Clevis hook 3/8 inch, zinc-plated Fairlead: One-piece billet aluminium hawse fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Winch Finish: Original Orange powder-coated Weight (GW): 30kg (66lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm
General description The 13,500lb (6,123kg) Original Orange 24V Electric Winch is designed for recovery trucks and 4x4 vehicles with a weight capacity of up to 3.5 tons. It features a robust construction and advanced technology, making it an ideal choice for heavy-duty applications. Technical specifications Single Line Rated Pull: 13,500lb (6,123kg) Motor: 24V 6.8hp/5.1kw, series wound Control: Remote switch with a 4.5m lead Gear Train: 3 stage planetary Gear Reduction Ratio: 265:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 63.5mm (2.5”), Length 224mm (8.82”) Drum Finish: Black, painted Cable: 28m x 11mm Dyneema SK75 Synthetic Rope Hook: Clevis hook 3/8 inch, zinc-plated Fairlead: One-piece billet aluminium hawse fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 25mmsq - 5.6mm diameter Winch Finish: Original Orange powder-coated Weight (GW): 30kg (66lb) Overall Dimensions (LxWxH): 536 x 160 x 218mm
AmazonThe Original Orange 12v Winch Ideal for Recovery Trucks and 4x4's up to 3.5 Tons, Suitable for all Offroad or Recovery Operations Latest Technology Twin Handset Long-range Wireless Remote Controls and Backup Control Lead. Comes with 28m x 11mm Dyneema SK75 Multi-strand Synthetic Rope. 3/8 Inch Clevis Hook G70 Grade Forged Steel, Zinc Plated For Corrosion Resistance. Safety Catch and Hand Saver. Includes a Strong Winchmax Branded Winch Cover to Protect from Water and Road Grime.
