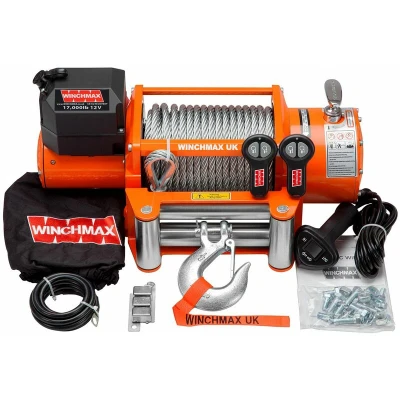

WINCHMAX 17,000lb (7,711kg) Original Orange 12v Electric Winch. 26m x 12mm Steel Rope. 1/2 Inch Hook.

General description The 17,000lb (7,711kg) Original Orange 12v Electric Winch is designed for recovery trucks and 4x4s over 3.5T. It features a powerful electric motor and advanced wireless remote controls, making it an ideal choice for heavy-duty applications. Technical specifications Single Line Rated Pull: 17,000lb (7,692kg) Motor: 12v 6.8hp/5.1kw, series wound Control: Remote Switch, 4.5m lead, in and out Gear Train: 3 stage planetary Gear Reduction Ratio: 358:1 Clutch: Sliding ring gear Braking Action: Automatic in the drum Drum Size: Diameter 85mm (3.4″), length 224mm (8.82”) Drum Finish: Black, painted Cable: 26m x 12mm galvanized steel wire rope Hook: Clevis hook 1/2 inch, zinc-plated Fairlead: 4-Way roller fairlead Battery: Recommended 650CCA minimum for winching Battery Leads: 2 gauge, 1.83m (72”) 35mmsq – 6.5mm diameter Winch Finish: Original Orange powder-coated Weight (GW): 60kg (132lb) Overall Dimensions (LxWxH): 555 x 196 x 249mm Mounting Bolt Pattern: 10.00” ± 0.015″ x
