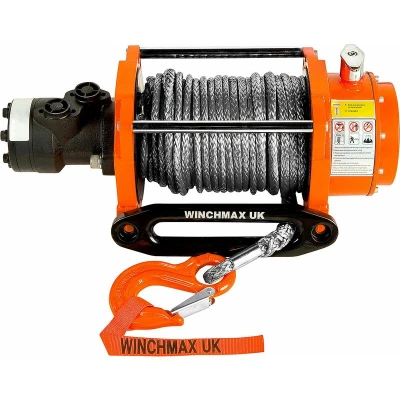

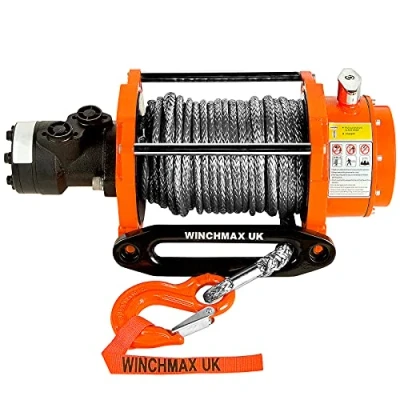

Winchmax 20,000lb (9,072kg) Original Orange Hydraulic Winch. 25m x 13mm Dyneema Synthetic Rope. Competition Hook.

ManoMano

General description The 20,000lb (9,072kg) Original Orange Hydraulic Winch is designed for heavy-duty applications, making it ideal for recovery trucks, trailers over 7.5T, as well as industrial, commercial, and agricultural use. This winch features a robust construction and high-performance capabilities. Technical specifications Single Line Rated Pull: 20,000lb (9,072kg) Motor: Hydraulic Gear Train: 3 Stage Planetary Gear Reduction Ratio: 32:1 Clutch: Sliding Ring Gear Braking Action: Automatic Drum Size: Diameter 88mm, Length 222mm Drum Finish: Black, painted Cable: 25m x 13mm Dyneema SK75 Synthetic Rope Hook: Competition hook with safety catch, orange Fairlead: Aluminium Hawse Fairlead Flow: 50-60 l/min Pressure: 10.8Mpa (108 Bar) Winch Finish: Original Orange powder coated Weight (GW): 48kg (105lb) Overall Dimensions (LxWxH): 548 x 196 x 249mm Mounting Bolt Pattern: 10.00” ± 0.015” x 4.50” ± 0.010” (254 x 114.3mm) No Load Line Speed: 6.5m/min (21.3 ft/min) Usage This hydraulic

Amazon

The Original Orange Winch Ideal for Recovery Trucks and 4x4's up to 3.5 Tons, Suitable for all Offroad or Recovery Operations Aluminium hawse fairlead. Precision CNC milled, laser-etched Come with 5m x 13mm Dyneema SK75 Synthetic Rope. Competition Hook with Safety Catch and Hand Saver Casing machined from billet steel for maximum impact protection.
