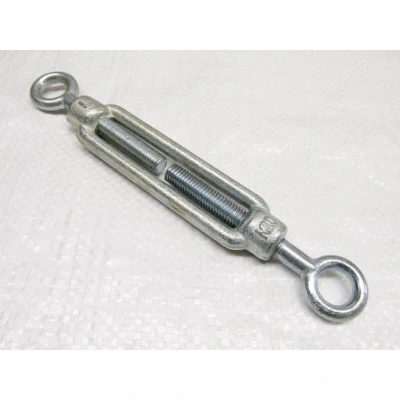

x1 M8 Eye to Straining Screw Turnbuckle

General description These galvanised eye and eye straining screws, also known as turnbuckles, are designed for tightening, tensioning, and adjusting various wire rope applications. Their open-bodied design allows for visibility of the thread, enabling users to monitor the rate of turning. They are versatile and can also be used with chain and cable, making them particularly popular in the caravanning industry. Technical specifications Galvanised finish Available sizes: 5 mm: A=5, B=70, C=7.5, D=117, E=164 6 mm: A=6, B=109, C=9, D=165, E=249 8 mm: A=8, B=108, C=10, D=175, E=251 10 mm: A=10, B=126, C=14, D=198, E=275 12 mm: A=12, B=125, C=16, D=230, E=315 16 mm: A=16, B=169, C=22, D=335, E=450 20 mm: A=20, B=202, C=24, D=335, E=515 22 mm: A=21, B=220, C=29, D=400, E=540 24 mm: A=23, B=250, C=29, D=445, E=610 30 mm: A=29, B=255, C=31, D=480, E=630 33 mm: A=31, B=295, C=36, D=525, E=705 Usage These straining screws are ideal for various applications, including: Tightening wire ropes
