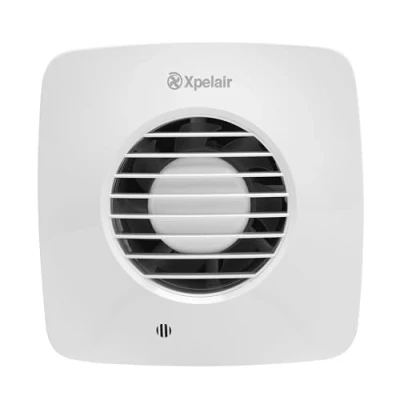

Xpelair 4 inch (100mm) Simply Silent Square Bathroom Fan with timer, Cool White (DX100BTS)

Plumbworld

The new Simply Silent fans from Xpelair feature the ability to set one of two speeds during installation providing you with two different extraction rates, 53 or 74 cubic m/hr. With two extraction rates you get two noise levels (22 and 34 decibels), the lower being marginally louder than rustling leaves. It also features an overrun timer to allow operation to continue for a set time after the light has been turned off. High levels of moisture mixed with anything electrical can be very dangerous and suitable protection must be given. The rating used for this is known as an IP (Ingress Protection) rating and advises where in the bathroom the device can be installed. These fans are IPX4 rated which offers protection from water sprayed from any direction. Features and Benefits: Extract Performance (m3/h): 54/76 Sound Pressure Level (dBA@3m): 22/34 Electrical Power Rating (Watts): 6.7/7.7 Specific Fan Power (W/l/s): 0.45/0.37 Two speeds – select during installation. IPX4 rated Sleek round design    Dimensions: Height (mm): 178.5 Width (mm): 178.5 Timer controlled Extractor fans with a built-in timer control means that the fan will operate with the bathroom light switch and then overrun for a set amount of time to continue removing moisture from the air. This is great for steamy bathrooms, allowing you to turn the light off but continue with extraction for a short time. Recessed Design Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility. Axial  Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan. IPX4 Rating This product has a rating of IPX4 which means it is protected from water splashes from any angle.   Zone 1 Rated IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests. These extractor fans can be fitted within Zone 1 as shown below. Use in Kitchen and Utility This type of fan is suitable for use in a kitchen and utility room to give you an excellent flow rate.

Electrical World

Product Description The Simply Silent DX100B twin-speed extractor fan features Ghost Air Movement Technology designed to deliver near silent ventilation. Meeting the latest building regulations this 4 (100mm) fan is specifically designed for use in bathrooms, shower rooms and ensuites. Requiring a 100mm diameter hole the Simply Silent DX100B is an ideal replacement for old noisy fans or as a new installation. The fan has a choice of two speeds that can be set to extract 15 or 21 litres of air per second and with innovative Ghost Air Movement Technology delivers low noise levels of 22 or 34 decibels @ 3 meters ensuring minimum noise irritation (15 litres per second at 22 dBA or 21 litres per second @ 34 dBA) . With a more conventional grille-style fascia finished in Xpelairs cool white, the DX100B offers a number of So Simple installation features making it the ideal replacement fan and with So Simple Maintenance features such as a twist and click facia the products is easy to clean and maintain. Box Contains 1 x Extractor Fan with overrun timer 30sec to 30 minutes Screws and Raw Plugs 1 x Instruction Manual

Amazon

EFFECTIVE BATHROOM EXTRACTOR FAN - The Xpelair DX100BTS domestic extractor fan features a timer, adjustable twin speeds and Ghost Air Movement technology to quietly eliminate odour, steam or humidity OUR QUIETEST BATHROOM FANS - Simply Silent design delivers an air extraction rate of 54 or 76 meters per hour (15 or 21 litres per min), for exceptional performance without waking you at night time EASY INSTALLATION - The compact, lightweight fan is simple to put up – the ideal replacement fan in a bathroom, utility, shower room, WC, downstairs toilet, wet room or en suite. COMPLIANT- IPX4 rated, the DX100 is suitable for fitting in wall or ceiling in compliance with IPX4 wiring zones. Independently tested by ISVR. With 1 year guarantee TRUSTED - Xpelair is part of the Glen Dimplex Group, trusted name in energy efficient electric heating, ventilation and cooling for over 70 years De-humidifier for bathroom, bathroom fan, extractor fan, remote control, silent, wall mounted, 100mm, ceiling, ventilation, mould, condensation, steam, quiet, toilet, Weight: 0.1212542441 Pounds, Manufacturer: Redring Xpelair Group

ManoMano

Excessive moisture and unwanted odours are always an issue in bathrooms. Opening a window can help but won’t solve the issue and what do you do when you haven’t got a window? Bathroom extractor fans are the solution. They can assist in the reduction of mould growth and keep your bathroom fresher for longer. The new Simply Silent fans from Xpelair feature the ability to set one of two speeds during installation providing you with two different extraction rates, 53 or 74 cubic m/hr. With two extraction rates you get two noise levels (22 and 34 decibels), the lower being marginally louder than rustling leaves. This DX100BTS has a contemporary square design. It’s ideal for convenient and simple installation into a window, ceiling or wall. It also features an overrun timer to allow operation to continue for a set time after the light has been turned off. High levels of moisture mixed with anything electrical can be very dangerous and suitable protection must be given. The rating used for
