Xpelair DX100T 4 100mm Square Bathroom Extractor Fan With Timer

Electrical World

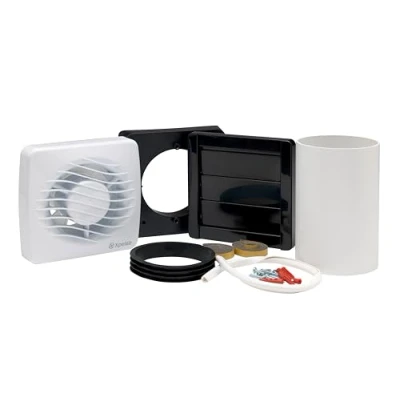

Xpelair DX100T 4 100mm Square Bathroom Extractor Fan With Timer Part of Xpelair's latest range of domestic extractor fans, the DX100T from Xpelair is a 4 100mm extractor fan with a built-in over-run timer to continue the extraction of moisture and odours after the unit is switched off, and is adjustable for a 2 - 20 minute run time, offering extra control over humidity and odours in bathrooms, shower rooms, cloakrooms, and toilets. the DX100T utilizes Xpelairs revolutionary Ghost air movement technology, making this the quietest intermittent fan range available on the market today. Complete with a universal mounting kit, installation of your new bathroom extractor fan has never been simpler. This kit includes: 1x wall tube, 2x gasket, 1x outer grille and skirt moulding for window mounting in single glazing up to 6mm, and 1x air operated backdraught shutter, outer grille and ducting. Main Features: 100mm (4) axial extractor fan with timer Maximum fan performance 21 l/s Lubricated for life motors with thermal cut-out protection Clip-off front cover for ease of cleaning Technical Specification: Electrical power rating (W): 12 Extract performance (FID, M³/h) Max/Min: 76 Extract performance (FID, l/s) Max/Min: 21 Sound pressure level dB(A)@3m: 35 Specific Fan Power (SFP) (W/l/s): 0.57 Operation Speeds: 1 IPX Rating: 5 Weight (kg): 1.2 Timer: Yes Timer run: 2 - 20 minute Universal Mounting Kit: Yes Comes with a 2 Year UK Manufacturer's Warranty To view the manufacturers manual for this product Click Here You may also be interested in a Dimplex Downflow Bathroom Heater

Amazon

4" (100MM) Bathroom Extactor Fan -Timer Delay Supplied with wall/window kit for window, wall and ceiling applications Extract Performance: 76m3 per hour, Noise Level 35 dBA @ 3 Meters Timer Delay operation, on/off with light switch, over-run timer can be set before switching off.Ideal for replacing noisy or broken 5V 40mm fans. IPX5 Rated, BEAB Approved and conforms to Builing Regulations Part F1.All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor., Manufacturer: Applied Energy Products Ltd
