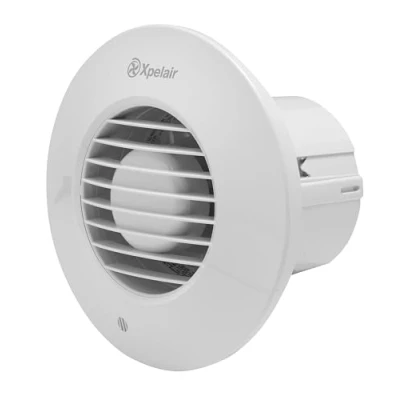

Xpelair Simply Silent 100mm Shower Fan Complete with Round Grille

Plumbworld

It’s the perfect combination of low noise levels and high rates of extraction. This Simply Silent shower fan has been purposely designed for installation above a shower. They provide direct extraction at the point of highest humidity for a steam-free bathroom. This 4" 100mm extract fan comes complete with a beautiful round fascia, designed to blend subtly with your bathroom ceiling and operated by a switch or remote sensor. The greater part of noise created by an extractor fan is usually the motor or, believe it or not, the movement of air through it. Xpelair has created Ghost Air Movement Technology to tackle this. They are made from the precision engineered parts coupled with a silent motor to make sure you don’t disturb the rest of the house while showering. Also featured is an integral timer which can be adjusted at installation from 30 seconds to 30 minutes depending on how misty your bathroom gets. Supplied with a ceiling fitting kit which includes 3 metres of flexible ducting and white grille to be fitted externally. A 2 year guarantee gives you that extra peace of mind.   Features and Benefits: Extremely quiet operation. 88% improved rate of extraction over other similar inline fans. Suitable for installation in zone 1. IPX4 rated. ErP compliant. 2 Year guarantee provided by Xpelair. Extract Performance: 54/76 m3/h Specific Fan Power: 0.45/0.37 W/I/s.   Supplied with: 3 metres of flexible ducting. White external grille. Timer controlled Extractor fans with a built-in timer control means that the fan will operate with the bathroom light switch and then overrun for a set amount of time to continue removing moisture from the air. This is great for steamy bathrooms, allowing you to turn the light off but continue with extraction for a short time. Recessed Design Recessed fans can be installed through a wall, window or alternatively the ceiling giving you that extra bit of flexibility. Axial  Axial type fans cause gas to flow through in an axial direction which is parallel to the shaft where the blades rotate, making the flow axial at exit and entry. Axial fans are designed to create a pressure difference and force which produces a flow through the fan. IPX4 Rating This product has a rating of IPX4 which means it is protected from water splashes from any angle.   Zone 1 Rated IP rating stands for 'Ingress Protection rating' and this helps us determine what bathroom electricals can go in particular bathroom zones. An IP (Ingress Protection) number or code is used here in the UK to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests. These extractor fans can be fitted within Zone 1 as shown below. Use in a Cloakroom or Bathroom This type of fan is suitable for use in a cloakroom and a bathroom to give you an excellent flow rate.

Electrical World

Simply Silent Shower Fan Complete with installation kit 4" 100mm extract fan with round grille fascia, featuring Ghost Air Movement Technology for quiet running.Sound pressure level db(A)@3m 22 / 34Supplied with 3M flexible ducting and white external grilleExtremely quiet running 88% improved extraction rate over comparable inline fans2 Operation SpeedsSimply Silent Shower Fan Complete 4" 100mm extract fan with round grille fascia, featuring Ghost Air Movement Technology for quiet running. Operated by a remote switch or sensor. Features integral timer that is adjustable at installation from 30 seconds to 30 minutes. Supplied with ceiling fitting kit comprising of 3M flexible ducting and white external grille.Technical SpecificationColour: WhiteIP Rating: IPX4Timer (adjustable 0.5 – 30m): YesExtract Performance: 54/76 m³/hExtract Performance: 15/21 l/sElectrical Power Rating: 6.0/6.7WSound Pressure Level: 22/34 dBA@3mSpecific Fan Power: 0.32 W/l/sDimensions (HxWxD): 178.1 x 178.1 x 122.2mmWarranty: 2 YearsTechnical Specification:Colour: White No. of Speeds: 2Dimensions: Length: 122mm x Height: 178mmWarranty: 2 Years

Amazon

Steam Removal: Simply Silent Shower Fan Complete carries out direct extraction right at the point of humidity for a steam-free environment Complete Solution: Designed for the fan to be installed in ceiling, the product come complete with a loft fitting kit - 3M of flexible ducting and an external grille - giving everything needed for installation Timer Operation: Simply Silent Shower Fan complete is a Timer product. This means that it is activated by an external switch (for example a light circuit) and will overrun for a period (selectable between 2 and 30mins) once the external switch is turned off. Quality Assured: The fan meets Part F of Building Regulations for Bathroom installations. It is IPX4 rated which means it is suitable for bathroom installations. Trusted and Reliable: Fan comes complete with a loft fitting kit and 2 year guarantee. Brought to you by Xpelair. The trusted ventilation brand for over 60 years, Weight: 2.1384839414 Pounds, Manufacturer: Redring Xpelair Group

ManoMano

Do you suffer from an over humid bathroom? Is it a task to clear the mirror without leaving marks all over it? The solution is simple, the DX100BT from the Xpelair range of bathroom accessories. It’s the perfect combination of low noise levels and high rates of extraction. This Simply Silent shower fan has been purposely designed for installation above a shower. They provide direct extraction at the point of highest humidity for a steam-free bathroom. This 4" 100mm extract fan comes complete with a beautiful round fascia, designed to blend subtly with your bathroom ceiling and operated by a switch or remote sensor. The greater part of noise created by an extractor fan is usually the motor or, believe it or not, the movement of air through it. Xpelair has created Ghost Air Movement Technology to tackle this. They are made from the precision engineered parts coupled with a silent motor to make sure you don’t disturb the rest of the house while showering. Also featured is an integral
