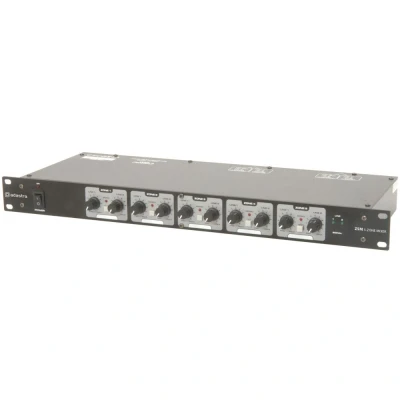

Z5M Zoning Mixer
|
£ 99.92 | To Shop |
Description
Boxed2Me
2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone.
All inputs and outputs are stereo via balanced XLR connectors.
Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.
PRODUCT FEATURES:
2 inputs to 5 zones
Mono selectable for each zone
Fully balanced XLR connections
SPECIFICATION:
Power supply 115/230Vac 50/60Hz (IEC)
Inputs Line 1 L+R, Line 2 L+R, balanced XLRF
Outputs Zone 1 to 5 L+R, balanced XLRM
Input impedance 40k Ohms
Output impedance 220 Ohms
Frequency response 20Hz - 25kHz, +0/-1dB
Signal to noise ratio >100dB
THD <0.005%
Dimensions 483 x 175 x 44mm
Weight 2.2kg
Box Contains
1 x Z5M | Zoning Mixer
