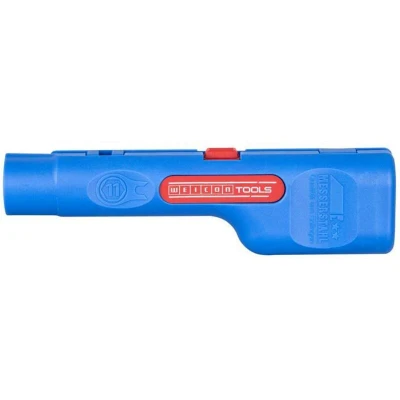

10051150 Coax Stripper No.1 f Plus WCN10051150 Weicon

The Weicon® No.1 F Plus Coax Stripper enables fast and easy stripping of all coax cables in just one single step. Due to the two pairs of blades facing each other the stripping process can be carried out quickly and in a space-saving manner by means of multiple light rotary movements. The preset set down dimension is suitable for common F-screw connectors (6 / 4mm). If required the blade inserts can be changed and thus other dimensions e.g. for compression connectors (6.5/6.5mm).Blade inserts with other dimensions are optionally available and can be conveniently exchanged using the ‘click system’. The tool is suitable for e.g. TV aerial cables from 6 - 8 mm. The gripping jaws can be used to screw the F-screw connectors onto the already stripped cable. The integrated open hexagon with 11mm width across flats (SW 11mm) enables space-saving assembly or disassembly of F-connectors during subsequent connection. Particularly in narrow places the hexagon allows very good accessibility and can be operated without further preparation. A locking mechanism guarantees safe storage of the tool.Approval / certificate Safety tested by TUV NORD.Specifications:Cable Type: Coaxial Cables Resp. Antenna and Transmission Cables.Application Area Outer Diameter: 6-8mm for F-screw connectors.Length: 125mm.PTDWCN10051150

General description This WEICON COAX Stripper No.1 F Plus is a high-quality tool designed for the efficient stripping of coaxial cables, particularly suitable for F-type connectors. It allows for quick removal of cable insulation in a single operation, utilizing dual opposing blades for smooth, light rotational movements. This tool is ideal for satellite dish and cable installation, especially in space-constrained environments. Technical specifications Length: 125 mm Weight: 47 g Material: Polyamide reinforced with fiberglass, high-quality steel blades Compatibility: Suitable for coaxial cables (TV antenna cables RG58, RG59) Connector sizes: 6/4 mm and 6.5/6.5 mm (with blade replacement) Outer Diameter: 6-8 mm for F-screw connectors Compatibility and accessories Compatible with F-type screw connectors and compression connectors Blade inserts with different dimensions available for various cable sizes Optional replacement blades for different connector sizes Includes a locking
