10pcs Battery Connector 45 A Modular Power Connectors

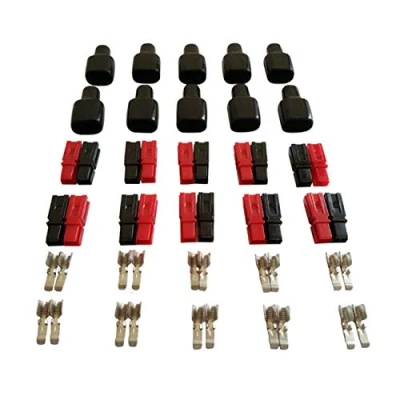

Package Includes: All Is featured in the first photo. Contact Material: Silver-plated Copper. Rated Current (amps): 45 A. Rated Voltage (Volts): 600 V. contact wire length [AWG]: 141210awg. maximum diameter of thread insulation [inches]: 0.175inches (4.45 mm). Average Contact Resistance (micro Ohms): < 500. Insulation resistant to test voltage (AC/DC): 2200 V. Contact retention force (lbf): 25lbf. No charge (contact/disconnection cycles): 10,000. Under Load (Hot Plug 250 cycles @ 120 V). Average insertion force (lbs): 3-5lbf. Operating Temperature: -20 °C to 105 °C. Flammability Class of shell material: UL 94-V0. flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors. Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store.
