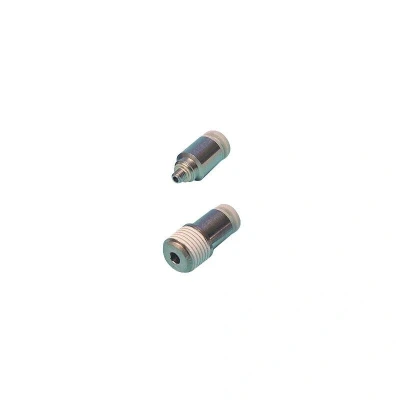

10x SMC KQ2S06 M5N One Touch Fitting

ManoMano

SMC: KQ2S06-M5N One Touch Fitting KJS Series The hexagon socket in the body is used to tighten the socket head male connector with a hexagon wrench. Useful in a confined space. Push-Fit Fittings Quick and simple tube insertion. Tapered threads have a re-usable thread seal. Pressure range: 0.9bar min to +10bar max. Temp range: -20C min to +70C max. Tube suitability: nylon, polyurethane. MPN: KQ2S06-M5N EAN: 0713049101187 KQ2S06-M5N One Touch Fitting Attributes: Additional Features: Compact and Lightweight Material: Brass Operating Temperature Range: -5 to +60°C Pressure Range: -100 kPa to +1MPabar Product Type: Hexagon Socket Head Male Connector Surface Finish: Electroless Nickel Plated Thread Sizes Male: M5mm Thread Standard: ISO Metric Tube Size: 6mm Weight Each: 3.5g

Zoro Tools

KJS SeriesThe hexagon socket in the body is used to tighten the socket head male connector with a hexagon wrench. Useful in a confined space. Push-Fit FittingsQuick and simple tube insertion. Tapered threads have a re-usable thread seal.Pressure range: 0.9bar min to +10bar max.Temp range: -20C min to +70C max.Tube suitability: nylon, polyurethane.
