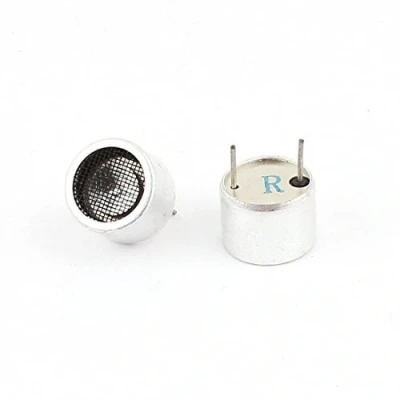

12mm Dia Aluminium Case 40KHz Receiver Ultrasonic Transmitter TR
|
£ 2.21 | To Shop |
Description
Amazon
Product Name: Transceiver; Model: T R; Max. Input voltage: 20 Vrms Impact impact: 50G; T40-12 (transmitter): Central frequency: 40 kHz / - 1 kHz Sound pressure level * 4: 112 dB (min.) Noise pressure attenuation: -10 dB (max) Bandwidth: 5 kHz (min. ); Receiver: Central frequency: 40 KHz / - 1 KHz Sensitivity: -67 dB / v / ubar (min.) - 6 dB Directivity: 80 degrees Band width: 5 KHz Capacity: 2500 pF Operating Temperature: -30C to 80C; Relative Operating Humidity * 1: 10-90%; Storage Temperature: -40C to 90C Welding temperature: 240 ° C; body size (each): 12 x 9.3 mm/0.47 x 0.36 inches (Dia. * T); Pin size: 0.7 mm x 6 mm / 0.028 inches x 0.24 inches (Dia. * L)
Compare webshops (1)
Description
(1)
Product Name: Transceiver; Model: T R; Max. Input voltage: 20 Vrms Impact impact: 50G; T40-12 (transmitter): Central frequency: 40 kHz / - 1 kHz Sound pressure level * 4: 112 dB (min.) Noise pressure attenuation: -10 dB (max) Bandwidth: 5 kHz (min. ); Receiver: Central frequency: 40 KHz / - 1 KHz Sensitivity: -67 dB / v / ubar (min.) - 6 dB Directivity: 80 degrees Band width: 5 KHz Capacity: 2500 pF Operating Temperature: -30C to 80C; Relative Operating Humidity * 1: 10-90%; Storage Temperature: -40C to 90C Welding temperature: 240 ° C; body size (each): 12 x 9.3 mm/0.47 x 0.36 inches (Dia. * T); Pin size: 0.7 mm x 6 mm / 0.028 inches x 0.24 inches (Dia. * L)
Product specifications
