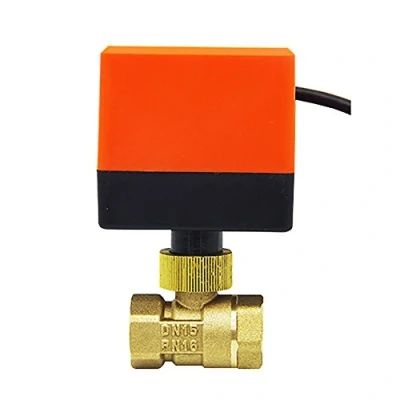

2 Way motorised Valve Electric Ball AC220v AC24v DC12v 1/2 3/4 1 1/4 inch (AC220v, inch)

Note: Firstly, connect the double color wire to Nuetral wire of 220v（-）; Secondly, prepare a switch to change the connection of blue wire and brown wire to Live wire of 220v. 1-while blue wire connect to L of 220v（+）, the valve open, after completely open, the actuator will be power off; 2-while the brown wire connect to L of 220v（+）, the valve close, after completely close, the actuatorwill be power off. the blue wire and the brown wire cannot connect to Live wire of 220v（+） at the same time. The maximum pressure is 1.0Mpa. The nominal pressure is 1.6Mpa. DN15 = 1/2 inch; DN20 = 3/4 inch; DN25 = 1 inch; DN32 = 1-1 / 4 inch Flow rate: DN15 (1/2 inch): 11m3/h; DN20 (3/4 inch): 20m3/h; DN25 (1 inch): 60m3/h; DN32 (1-1/4 inch): 80m3/h;, Manufacturer: Yisheng
