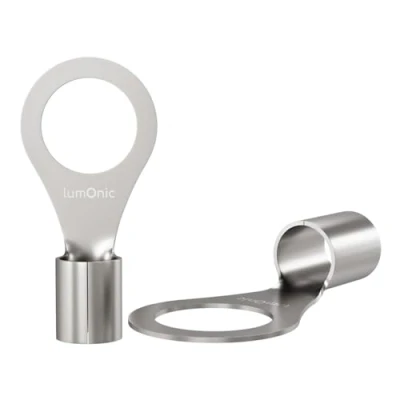

25x Ring Cable Lug Blank 6 10mm² Hole Diameter M10 Copper tinned

Art ring cable lugs set consisting of 25 cable lugs 6-10 mm² with M10 ring opening and uninsulated crimp terminal blank. Suitable for: the M10 cable eyelet of the ring terminal has a diameter of d2: 10.5 mm and is suitable for 6-10 mm² cable cross-section. Can also be used as a pipe cable lug in the range between 6 mm2 10 mm2. Dimensions – The cable lug M10 has a diameter d2: 10.5 mm, inner diameter diameter: 4.5 mm and outer diameter diameter: 7.2 mm. The length E: 8.5 mm and total length L: 29.8 mm. Other dimensions: W: 15 mm, F: 13.8 mm Quality product – Our ring terminals 6-10 mm² are made of high-quality tinned copper. Ideal for safe electrical installations. Box contents: a tube cable lug set consisting of 25 pieces 6-10 mm² cable lugs uninsulated with ring eyelets M10
