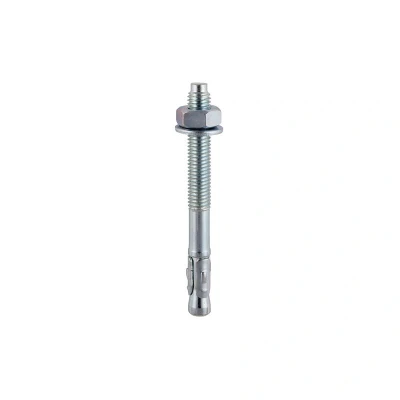

2x TIMCO Throughbolts Zinc 08100TB Pack of 50

A Versatile Torque Controlled Through Fixing For Use In A Wide Range Of Anchoring Applications Into Concrete. Complete With Hex Full Nut And Washer. Note: If No Torque Wrench Is Available Tighten The Nut 3 To 4 Full Turns From Finger Tight. Chamfered Head Design To Prevent Damage To Thread During InstallationZinc Plated And Passivated (3-5 Microns)Manufactured From Cold Formed Carbon Steel (Grade 5.8)Special Expansion Clip For Rapid InstallationSee `More Information` below for sizing and Colour detailsSpecificationPackaged Width = 94mmFixture Hole Diameter (metric) = 9mmMaterial = Carbon SteelPackaged Height = 90mmNut Socket Size (metric) = 13mmEdge Distance (metric) = 55mmFinish = ZincPackaged Weight = 1.86kgPackaged Length = 136mmLength (metric) = 100mmThread Diameter (metric) = M8Max Fixture Thickness (metric) = 45mmMin Drill Hole Depth (metric) = 45mmDrill Hole Diameter (metric) = 8mmPTDTIM08100TB

Ready assembled complete with expansion clip for rapid installation Chamfered head design to prevent damage to thread during installation Cold formed Carbon Steel - Grade 5.8 Zinc plated and passivated
