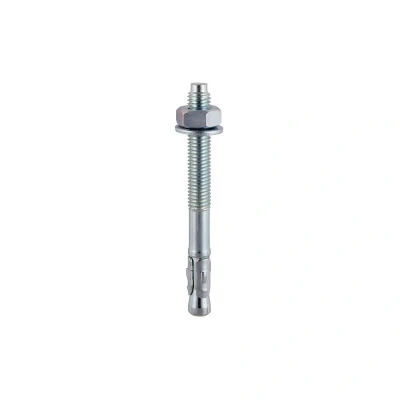

2x TIMCO Throughbolts Zinc 08130TB Pack of 50

A Versatile Torque Controlled Through Fixing For Use In A Wide Range Of Anchoring Applications Into Concrete. Complete With Hex Full Nut And Washer. Note: If No Torque Wrench Is Available Tighten The Nut 3 To 4 Full Turns From Finger Tight. Chamfered Head Design To Prevent Damage To Thread During InstallationZinc Plated And Passivated (3-5 Microns)Manufactured From Cold Formed Carbon Steel (Grade 5.8)Special Expansion Clip For Rapid InstallationSee `More Information` below for sizing and Colour detailsSpecificationPackaged Width = 90mmFixture Hole Diameter (metric) = 9mmMaterial = Carbon SteelPackaged Height = 90mmNut Socket Size (metric) = 13mmEdge Distance (metric) = 55mmFinish = ZincPackaged Length = 160mmLength (metric) = 130mmMin Drill Hole Depth (metric) = 45mmThread Diameter (metric) = M8Packaged Weight = 2.301kgMax Fixture Thickness (metric) = 75mmDrill Hole Diameter (metric) = 8mmPTDTIM08130TB

General description A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Technical specifications Size: M8 x 130 Compatibility and accessories Complete with hex full nut Includes washer Installation If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
