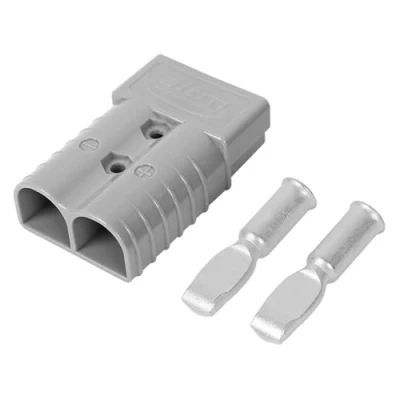

350A Battery Connector AWG 2/0 Quick Connect Modular Power Connectors Disconnect (Grey)

Package included: all is included in the first picture.Material: Silver Copper.Recurrent Current (Amperes): 350 A.Rated Voltage Rating: 600 V.Contact Barrel Wire Size [AWG] 2 / 0awg.Diameter Maximum wire insulation [inches]: 1.1inches (27.9mm). Medium contact resistance (micro ohm): 50. Test voltage resistant insulation (AC / DC Volts): 2200V. Contact retention force ( lbf) 500lbf. Dimensions: 108x70x33mm / 4.3x2.8x1.3 ".No load (contact / disconnect cycles): At 10,000.Under load (Hot Plug 250 cycles @ 120V): 100A. Medium insertion force (pounds): 30lbf .Operating temperature ° C: -20 ° to 105 ° .CLASS material class: UL 94-V0.Good material: the product is made from good materials, the continuIty is perfect, the resistance to bad environ It is hermaphrodite connectors. Self-erasure makes the surface of the push needle clean, the low contact resistance is reliable. The connector can be used in a strong shock environment and with the fast action function in a large electric current. Stainless steel shrapnel can ensure constant contact stress and overcomes intermittent overload in case of frequent splicing and interruption. Easy to use: Regardless of the plug or plug, inserting into the same color is a pair, easy and quick to splice and interrupt.
