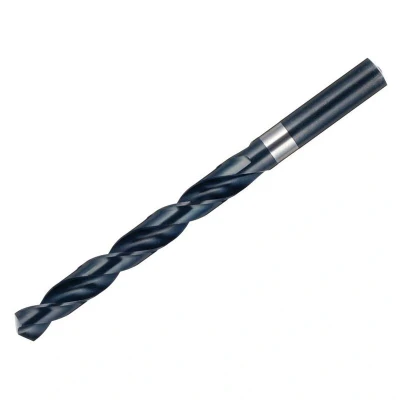

5x Dormer A100 10.10MM Jobber/Twist Drill HSS Straight Shank

General description Dormer A100 Metric HSS jobber drills are designed for general-purpose engineering applications. They offer excellent self-centering capabilities on a variety of materials and are suitable for both hand and machine use. This high-speed steel (HSS) twist drill is specifically made for drilling in steel and cast iron, featuring a cylindrical shank and a right-hand cutting direction. Technical specifications Tip diameter: 10.10 mm Working length: 87 mm Overall length: 133 mm Spiral length: 87 mm Tip angle: 118° Shank diameter: 10.1 mm Material: HSS (High-Speed Steel) Standard: DIN 338 Tolerance: h8 Depth of drilling: 4xD Quality: Profile-ground Coating: Steam-treated Compatibility and accessories Compatible with standard drill chucks and drill presses designed for 10.1 mm shanks Supplied in packs of 5 pieces Installation Insert the drill into a compatible drill chuck with a 10.1 mm shank Secure the drill tightly to prevent slipping during operation Usage Use for
