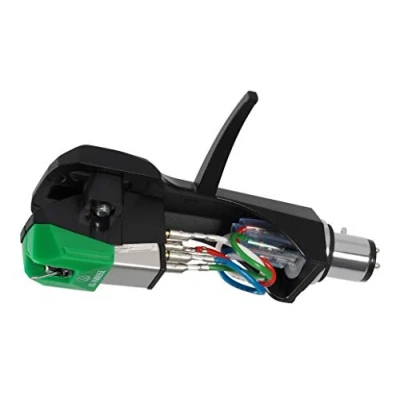

Audio Technica AT VM95E/H Headshell/Dual Moving Magnet Cartridge Combo Kit (Black/Green)
Featured
|
£ 78.00 |
To Shop
|
|
£ 78.00 |
To Shop
|
| COMPARE ALL WEBSHOPS (2) | ||
Description
Amazon
Model AT-VM95E/H Type VM Stereo Dual Magnet Mounting 1/2' centres Frequency Response 20 - 22,000 Hz Channel Separation 20 dB (1 kHz) Output Channel Balance 2.0 dB (1 kHz) Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec) Vertical Tracking Angle 23° Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g) Stylus Shape Elliptical Stylus Size 0.3 x 0.7 mil Stylus Construction Bonded Round Shank Cantilever Alu minium Pipe Coil Impedance 3.3 kO (1 kHz) Coil Inductance 550 mH (1 kHz) DC Resistance 485 O Static Compliance 17 x 10 - 6 cm / dyne Dynamic Compliance 7 x 10 - 6 cm / dyne (100 Hz) Wire Used for Coil T.P. Copper Recommended Load Impedance 47,000 O Recommended Load Capacitance 100-200 pF Weight 15.5 g Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm) Replacement Stylus AT-VMN95E
Description
(1)
Model AT-VM95E/H Type VM Stereo Dual Magnet Mounting 1/2' centres Frequency Response 20 - 22,000 Hz Channel Separation 20 dB (1 kHz) Output Channel Balance 2.0 dB (1 kHz) Output Voltage 4.0 mV (@ 1 kHz, 5 cm/sec) Vertical Tracking Angle 23° Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g) Stylus Shape Elliptical Stylus Size 0.3 x 0.7 mil Stylus Construction Bonded Round Shank Cantilever Alu minium Pipe Coil Impedance 3.3 kO (1 kHz) Coil Inductance 550 mH (1 kHz) DC Resistance 485 O Static Compliance 17 x 10 - 6 cm / dyne Dynamic Compliance 7 x 10 - 6 cm / dyne (100 Hz) Wire Used for Coil T.P. Copper Recommended Load Impedance 47,000 O Recommended Load Capacitance 100-200 pF Weight 15.5 g Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm) Replacement Stylus AT-VMN95E
Product specifications
