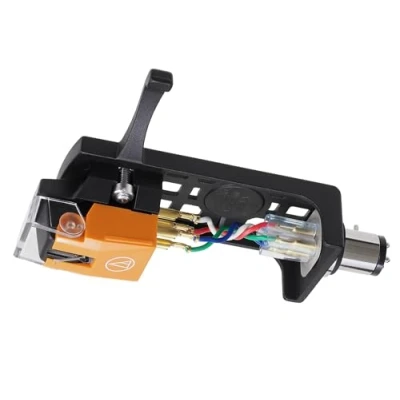

Audio Technica VM530EN/H Headshell/Dual Moving Magnet Cartridge Combo (Orange)
Featured
|
£ 161.24 |
To Shop
|
|
£ 163.49 |
To Shop
|
Description
Amazon Marketplace
Type VM Type Mounting 1/2' centres Frequency Response 20 - 25,000Hz Channel Separation 27dB (1kHz) Output Channel Balance 1.5dB (1kHz) Output Voltage 4.0mV (1kHz, 5cm/sec.) Vertical Tracking Angle 23? Vertical Tracking Force Range 1.8 - 2.2g (2.0g standard) Stylus Shape Elliptical Nude Stylus Size 0.3 x 0.7 mil Stylus Construction Nude Round Shank Cantilever Aluminium Pipe Coil Impedance 2,700Ohm (1 kHz) Static Compliance 35 x 10-6 cm/dyne Dynamic Compliance 8 x 10-6 cm/dyne (100Hz) Recommended Load Impedance 47,000Ohm Recommended Load Capacitance 100 - 200pF Weight 6.4g Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm Replacement Stylus VMN30EN Accessories Included Cartridge installation screws 5mm 2 and 10mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1
Description
(2)
Type VM Type Mounting 1/2' centres Frequency Response 20 - 25,000Hz Channel Separation 27dB (1kHz) Output Channel Balance 1.5dB (1kHz) Output Voltage 4.0mV (1kHz, 5cm/sec.) Vertical Tracking Angle 23? Vertical Tracking Force Range 1.8 - 2.2g (2.0g standard) Stylus Shape Elliptical Nude Stylus Size 0.3 x 0.7 mil Stylus Construction Nude Round Shank Cantilever Aluminium Pipe Coil Impedance 2,700Ohm (1 kHz) Static Compliance 35 x 10-6 cm/dyne Dynamic Compliance 8 x 10-6 cm/dyne (100Hz) Recommended Load Impedance 47,000Ohm Recommended Load Capacitance 100 - 200pF Weight 6.4g Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm Replacement Stylus VMN30EN Accessories Included Cartridge installation screws 5mm 2 and 10mm 2, Washer 2, Hexagon nut 2, Non-magnetic screwdriver 1, Brush 1, Lead wire set 1
AmazonMulti-purpose robustness Easy to emble
Product specifications
