Bessey STC HH70 horizontal toggle clamp, Clamping range:65 mm, Grey/Red

ManoMano

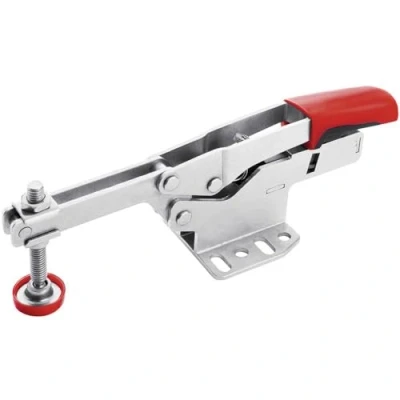

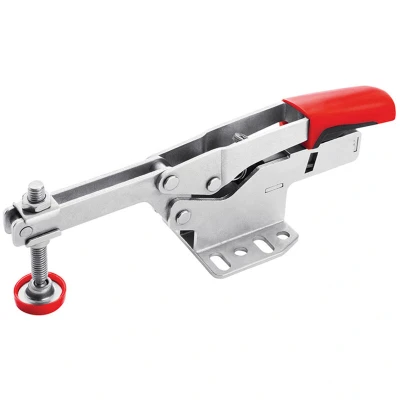

General description This Bessey STC Self-Adjusting Horizontal Toggle Clamp is a versatile clamping tool designed for precise and adjustable holding of materials. It features an open arm and a horizontal base plate, with a lever in a horizontal position when in tension. The clamp automatically adjusts its height up to 60 mm without changing the screw position, maintaining a consistent clamping force. It is ideal for small-scale productions and various applications requiring secure holding. Technical specifications Clamping Height: up to 60 mm Clamping Force: up to 2500 N (approximately 550 lbs) Weight: 0.42 kg (420 grams) Clamping Width: 60 mm Type: STC-HH70 Material: High-strength, tempered steel plates for durability Handle: Oil-resistant, two-component plastic grip Compatibility and accessories Compatible with standard workpieces requiring clamping within 60 mm width Suitable for use with various fixtures and accessories designed for clamping tools Installation Place the clamp on a

Power Tools Direct

These Bessey STC Self-Adjusting Horizontal Toggle Clamps automatically adjust to different workpiece heights while maintaining a constant clamping force. They ensure quick and secure clamping and are ideal for small-scale productions. Using the set screw on the cantilevered joint the clamping force can be adjusted to meet particular requirements. The baseplate which is suitable for both metric and imperial has been designed to facilitate fast and secure clamping set up. The Toggle Clamps have high-quality oil-resistant two-component handles. These are ergonomically designed to fit well in the hand and provide a good grip.This STC Self-Adjusting Horizontal Toggle Clamp has the following specification: Clamping Height: up to 60mm.Clamping Force: up to 2500N.Weight: 0.42kg.PTDBESSTCHH70

Amazon

Accessories Span wide 60mm Power source type: Hand Powered Adjustable clamping force up to 2,500 N depending on the setting screw in the joint Hole pattern of the base plate suitable for millimetres and inches Span wide: 60mm Adjustable clamping force up to 2 500 N depending on the setting screw in the joint, Weight: 0.9259415004 pounds, Manufacturer: bessey
