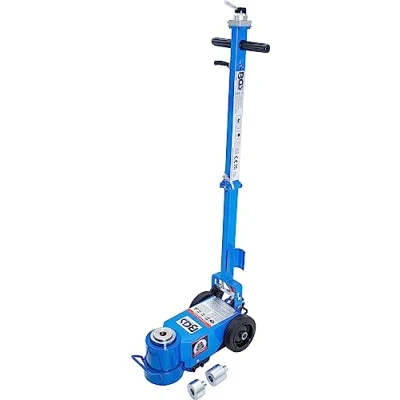

BGS 74287 Jack Pneumatic Mobile 25/50 t

short compact design, therefore easy to maneuver | hydraulic system supported by compressed air for easy lifting large support surface for safe standing | 2-steps | with an initial height of 165 mm, it is possible to get under practically any axle of medium and small commercial vehicles overload protection by overload pressure valve | maximum lifting height is achieved by the two adapters included in delivery max. load bearing capacity: 50 t | max. load bearing capacity: 25 t | lifting height: 165 mm | height min: 165 mm | height max: 330 mm | diameter plate: 98 mm | ground clearance: 165 mm | rear width: 280 mm | width in front: 160 mm length: 520 mm | length lever: 1160 mm | diameter handle: 50 x 30.5 mm | working pressure: 8 - 12 bar | height of adapters: 40, 60 mm | cylinder diameter: 136 mm | air requirement: 35 - 40 l/min | wheel diameter: 155 mm
