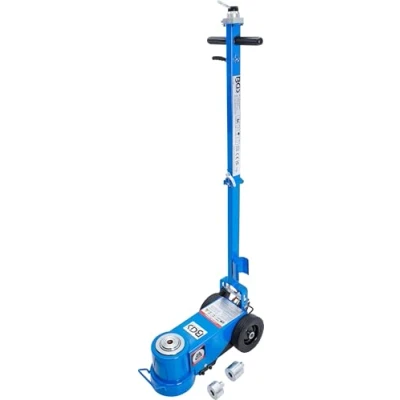

BGS 74288 Jack Pneumatic Mobile 40/80 t

short compact design, therefore easy to maneuver | hydraulic system supported by compressed air for easy lifting large support surface for safe standing | 2-steps | suitable for commercial vehicles, tractors, agricultural machinery as well as larger construction machines and construction vehicles overload protection by overload pressure valve | maximum lifting height is achieved by the two adapters included in delivery max. load bearing capacity: 80 t | max. load bearing capacity: 40 t | lifting height: 180 mm | height min: 205 mm | height max: 385 mm | diameter plate: 127 mm | ground clearance: 205 mm | rear width: 280 mm width in front: 200 mm | length: 610 mm | length lever: 1310 mm | diameter handle: 50 x 30.5 mm | working pressure: 8 - 12 bar | height of adapters: 40, 60 mm | cylinder diameter: 165 mm | air requirement: 35 - 40 l/min | wheel diameter: 155 mm, Weight: 141.09584768 pounds, Manufacturer: BGS
