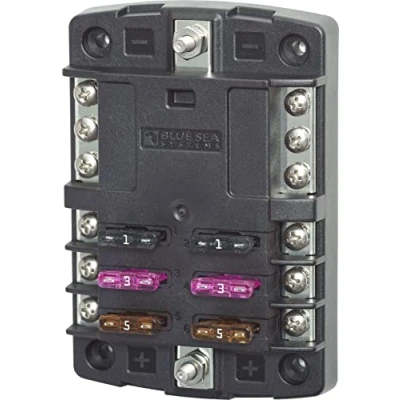

Blue Sea Systems 5030 ST Blade Fuse Block 6 Circuit with Ground

Blue Sea Systems Fuse Block ST Blade 6 Circuit with Ground and Cover, part number 5025, can be used for 24-hour circuits Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer Positive distribution bus with #10-32 stud Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels
