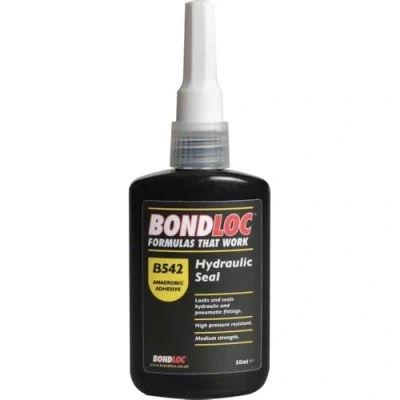

Bondloc BONB54250 Industrial Gasketing, Set of 6
Featured
|
£ 24.75 |
To Shop
|
|
£ 25.14 |
To Shop
|
|
£ 28.36 |
To Shop
|
| COMPARE ALL WEBSHOPS (3) | ||
Description
ManoMano
General description Bondloc B542 Hydraulic Seal is a thixotropic anaerobic liquid that cures to form a durable, high-pressure seal on threaded couplings used in hydraulic and pneumatic systems. It effectively seals low, medium, and high-pressure lines and can be used for various fittings, valves, adaptors, quick disconnects, compression fittings, and vibration-proof joints. Technical specifications Resin: Dimethacrylate Colour: Brown Fixture Speed No Activator: 10 - 20 mins Fixture Speed With Activator: < 5 mins Viscosity: 1000 to 2750 cps at 2.5 rpm, 400 to 800 cps at 20 rpm Gap fill: 0.05mm to 0.25mm Flash point: >100°C Shelf life: 2 Years @ 20°C Specific gravity: 1.06 Max operating temperature: -55°C to +150°C Full cure time: 12 hours Typical breakaway ISO 10964: 15 N.m Typical prevailing ISO 10964: >8 N.m DIN 10964 Breakloose: 24 N.m DIN 10964 Prevailing: 15 to 35 N.m Typical Break and Prevailing: 20 N.m/15 N.m Installation Apply the sealant to clean, dry threads or surfaces.
Description
(3)
General description Bondloc B542 Hydraulic Seal is a thixotropic anaerobic liquid that cures to form a durable, high-pressure seal on threaded couplings used in hydraulic and pneumatic systems. It effectively seals low, medium, and high-pressure lines and can be used for various fittings, valves, adaptors, quick disconnects, compression fittings, and vibration-proof joints. Technical specifications Resin: Dimethacrylate Colour: Brown Fixture Speed No Activator: 10 - 20 mins Fixture Speed With Activator: < 5 mins Viscosity: 1000 to 2750 cps at 2.5 rpm, 400 to 800 cps at 20 rpm Gap fill: 0.05mm to 0.25mm Flash point: >100°C Shelf life: 2 Years @ 20°C Specific gravity: 1.06 Max operating temperature: -55°C to +150°C Full cure time: 12 hours Typical breakaway ISO 10964: 15 N.m Typical prevailing ISO 10964: >8 N.m DIN 10964 Breakloose: 24 N.m DIN 10964 Prevailing: 15 to 35 N.m Typical Break and Prevailing: 20 N.m/15 N.m Installation Apply the sealant to clean, dry threads or surfaces.
Power Tools DirectBondloc B542 Hydraulic Seal is a thixotropic liquid which cures anaerobically to form a tough high pressure seal on all types of threaded couplings used on low medium and high pressure lines. Used for all types of hydraulic connections and sealing against typical pressure line ratings. Can also be used to fit valves threaded couplings adaptors quick disconnect parts compression fittings and vibration proofing joints. Specifications: Resin: Dimethacrylate.Colour: Brown.Fixture Speed No Activator: 10 - 20 mins. Fixture Speed With Activator: 100°C.Shelf life: 2 Years @ 20°C.Specific gravity: 1.06.Max operating temp: -55°C to + 150°C. Cured Performance: Full Cure Time: 12 hours.Typical breakway ISO 10964: 15 N.m.Typical prevailing ISO 10964: >8 N.m.DIN 10964 Breakloose: 24 N.m.DIN 10964 Prevailing: 15 to 35 N.m.Typical Break and Prevailing: 20N.m/15N.m.Bondloc Hydraulic Seal Pneumatic Fittings. Size: 50ml.PTDBONB54250
AmazonB542 Hydraulic Seal Pneumatic Fittings 50ml Bondloc Accessories
