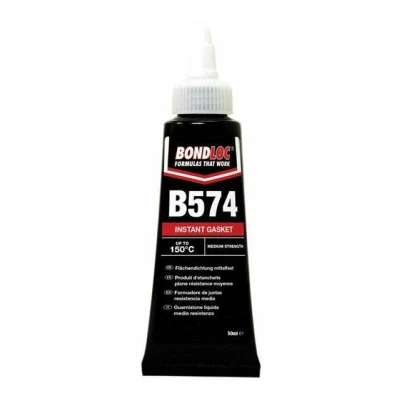

Bondloc BONB57450 Industrial Gasketing, Set of 8

Bondloc B574 is a highly effective Instant Gasket material, ideal for a variety of sealing applications. This innovative product is designed to form a gasket in place, allowing it to create virtually any shape or size, effectively replacing traditional materials such as paper and cork. With its unique properties, Bondloc B574 eliminates issues related to relaxation and load loss, ensuring robust and reliable seals.

Key Features

Bondloc B574 is particularly suited for immediate low-pressure service, rated up to 6 bar. Once cured, it can withstand pressures of up to 350 bar, depending on the gap size in the application. This feature makes it a versatile solution for numerous formed-in-place applications, including:

- Gearbox sealing

- Pump flanges

- Transmission assemblies

- Cover plates on tanks

- Cam shaft sealing

- Bearing gaps

- Outer housings

- Crank case and sump assemblies

- Flange pipe fittings

Specifications

Bondloc B574 is formulated with a dimethacrylate resin, providing excellent adhesion and sealing capabilities. The product is an orange paste, ensuring visibility during application.

- Cure Speed with Activator: 10 minutes

- Cure Speed without Activator: 15-30 minutes

- Viscosity: 50,000 cps (Brookfield Sp3 @ 20 rpm)

- Gap Fill/Max Threadform: 0.5mm/M36

- Flash Point: >100°C

- Shelf Life: 12 months when stored at 20°C

- Specific Gravity: 1.10

- Maximum Operating Temperature: -55°C to 150°C

Once fully cured, typically within 24 hours at 20°C, Bondloc B574 exhibits impressive mechanical properties. It boasts a breakloose strength of 8 N.m and a static shear strength of 10 N.m, making it ideal for demanding conditions.

Application Instructions

For optimal performance, Bondloc B574 can be used with or without an activator. When using the activator, the cure time is significantly reduced, allowing for quicker assembly. Surface preparation is crucial to ensure proper adhesion; ensure that surfaces are clean and free from contaminants before application. The product can be applied directly to the surfaces requiring sealing, filling gaps as necessary while maintaining ease of use.

In summary, Bondloc B574 Instant Gasket Maker offers an outstanding solution for a wide range of sealing needs, preserving the integrity of assembled parts while providing a strong, reliable, and immediate seal. Its adaptability across diverse applications coupled with its outstanding performance characteristics makes it an essential tool for both professional and DIY users.
