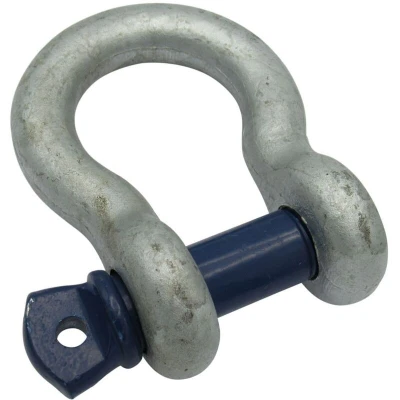

Bow Shackle with Screw Pin 25 Ton (Lifting Towing Galvanised Steel 25000KG)

General description 25 Ton Bow Shackle with Screw Pin is designed for heavy lifting applications, capable of supporting a safe working load of 25 tonnes (25000 kg). Manufactured from drop-forged steel, this shackle features a hot-dipped galvanized body and a painted pin, ensuring durability and resistance to corrosion. With a safety factor of 5:1, it provides optimum protection during use. Technical specifications Product Code: SFUSSPB25 Product Weight: 13 kg Safe Working Load: 25 Tonnes Body Finish: Hot Dipped Galvanised Pin Finish: Painted Safety Factor: 5:1 Conforms to: BS EN 13889: 2003 + A1: 2008 Dimensions: A: 44 mm, B: 50 mm, C: 74 mm, D: 107 mm, E: 175 mm, F: 125 mm, G: 55 mm Other information Test Certificate Supplied (Sent Via Email) *Colour might vary from image*
