Bow Shackle with Screw Pin 9.5 Ton (Lifting Towing Galvanised Steel 9500KG)
Featured
|
£ 19.75 |
To Shop
|
|
£ 19.75 |
To Shop
|
Description
ManoMano

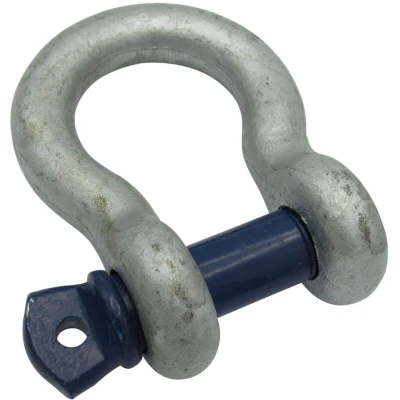

General description 9.5 Ton Bow Shackle with Screw Pin is designed for heavy lifting applications, offering a safe working load of 9.5 tonnes (9500 kg). Manufactured from drop-forged steel, this shackle features a hot-dipped galvanized body and a painted pin, ensuring durability and resistance to corrosion. With a safety factor of 5:1, it provides optimum protection during use. Technical specifications Product Code: SFUSSPB9.5 Product Weight: 3.2 kg Safe Working Load: 9.5 Tonnes Body Finish: Hot Dipped Galvanised Pin Finish: Painted Safety Factor: 5:1 Conforms to: BS EN 13889: 2003 + A1: 2008 Dimensions: A: 29 mm, B: 32 mm, C: 45 mm, D: 67 mm, E: 107 mm, F: 72 mm, G: 36 mm Other information Test Certificate Supplied (Sent Via Email) *Colour might vary from image*
Description
(2)
General description 9.5 Ton Bow Shackle with Screw Pin is designed for heavy lifting applications, offering a safe working load of 9.5 tonnes (9500 kg). Manufactured from drop-forged steel, this shackle features a hot-dipped galvanized body and a painted pin, ensuring durability and resistance to corrosion. With a safety factor of 5:1, it provides optimum protection during use. Technical specifications Product Code: SFUSSPB9.5 Product Weight: 3.2 kg Safe Working Load: 9.5 Tonnes Body Finish: Hot Dipped Galvanised Pin Finish: Painted Safety Factor: 5:1 Conforms to: BS EN 13889: 2003 + A1: 2008 Dimensions: A: 29 mm, B: 32 mm, C: 45 mm, D: 67 mm, E: 107 mm, F: 72 mm, G: 36 mm Other information Test Certificate Supplied (Sent Via Email) *Colour might vary from image*
AmazonSafe Working Load - 9.5 Tonnes Conforms To: BS EN 13889: 2003 + A1: 2008Safety Factor: 5:1A= 29MMB= 32MMC= 48MMD= 66MME= 106MMF= 73MMG= 36MM, Manufacturer: SecureFix Direct
