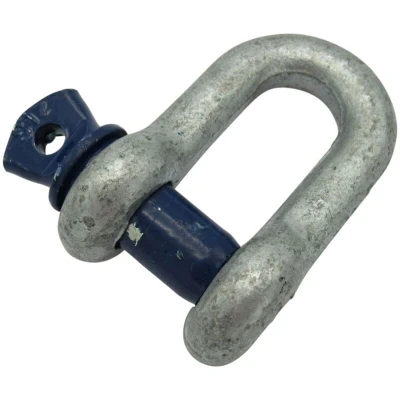

Galvanised Lifting Dee Shackle Screw Pin 9.5 Ton (9.5T D Towing Rigging 9500KG)

General description 9.5 Ton Dee Shackle with Screw Pin is designed for heavy lifting applications, with a safe working load of 9.5 tonnes (9500 kg). This chain shackle, also known as a D-shackle, features a drop forged manufacturing process and is suitable for various lifting tasks. The shackle is hot dipped galvanized for durability, while the pin is painted for added protection. It is important to note that the color may vary from the picture. Technical specifications Product Code: SFUSSPD9.5 Product Weight: 3.06 kg Safe Working Load: 9.5 Tonnes Safety Factor: 5:1 Dimensions: A: 28 mm B: 32 mm C: 87 mm D: 45 mm E: 66 mm Other information Manufactured Process: Drop Forged Body Finish: Hot Dipped Galvanised Pin Finish: Painted Test Certificate Supplied (Sent Via Email) Conforms to: BS EN 13889: 2003 + A1: 2008
