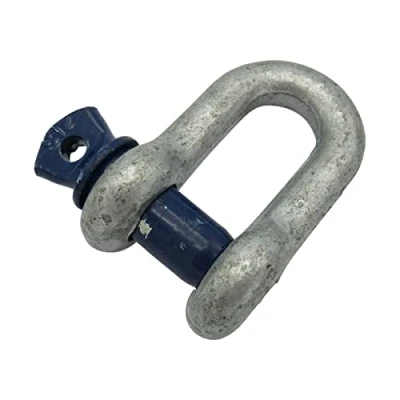

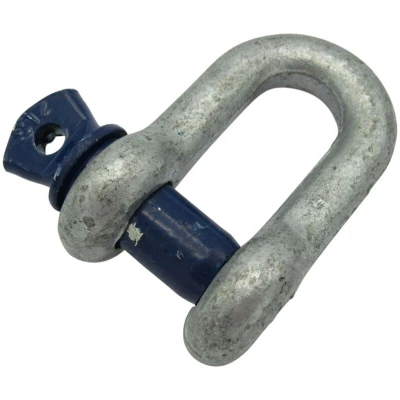

Galvanised Lifting Dee Shackle Screw Pin 13.5 Ton (13.5T D Towing Rigging)

ManoMano

Specification : Product Code:SFUSSPD13.5 Product Weight: 5.26kg 13.5 Ton Chain Shackle US Federal Specification RR-C-27IDIV Safe Working Load - 13.5 Tonnes Conforms To: BS EN 13889: 2003 + A1: 2008 Product Code A (MM) B (MM) C (MM) D (MM) E (MM) SFUSSPD0.33 5.5 6 20 7 15 SFUSSPD0.5 7 8 21 12 18 SFUSSPD0.75 9 9 26 13 22 SFUSSPD1 11 11 31 17 25 SFUSSPD1.5 11 13 36 18.5 27 SFUSSPD2 14 16 41 21.5 31 SFUSSPD3.25 16 19 50 27 38 SFUSSPD4.75 19 22 60 34 47 SFUSSPD6.5 22 25 73.5 39 53 SFUSSPD8.5 25 28 81 42 59 SFUSSPD9.5 28 32 87 45 66 SFUSSPD12 33 35 100 52 76 SFUSSPD13.5 35 38 116 54 84 SFUSSPD17 38 42 124 60 92 SFUSSPD25 45 50 140 73 105 SFUSSPD35 50 54 175 82 124 SFUSSPD55 63 70 190 100 151 Manufactured Process: Drop Forged Body Finish: Hot Dipped Galvanised, Pin Finish: Painted Safety Factor: 5:1 They have a high factor of safety to ensure optimum safety when in use. *Please Note Colour Can Vary To Picture* Chain shackles are also known as D-shackles. Both refer to the �D� shape

Amazon

Safe Working Load - 13.5 Tonnes A=35MM B=38MM C=116MM D=54MM E=84MM Screw Pin : 1.3/8 x 1.1/2 Safety Factor: 5:1, Manufacturer: SecureFix Direct
