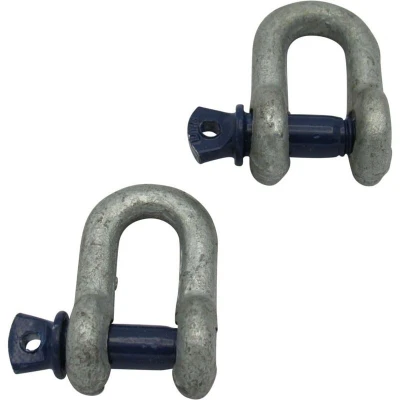

Galvanised Lifting Dee Shackles Screw Pin 1.5 Ton (1.5T D Towing Rigging 1500KG)

ManoMano

General description 1.5 Ton Dee Shackles with Screw Pin are designed for lifting applications with a safe working load of 1.5 tonnes (1500 kg). These chain shackles, also known as D-shackles, feature a drop forged manufacturing process and are suitable for various lifting tasks. The shackles are hot dipped galvanized for durability, while the pin is painted for added protection. They are engineered with a high safety factor of 5:1 to ensure optimum safety during use. Technical specifications Product Code: SFUSSPD1.5 Product Weight: 0.36 kg Safe Working Load: 1.5 Tonnes Manufactured Process: Drop Forged Body Finish: Hot Dipped Galvanised Pin Finish: Painted Safety Factor: 5:1 Dimensions: A: 11 mm B: 13 mm C: 36 mm D: 18.5 mm E: 27 mm Other information Conforms to: BS EN 13889: 2003 + A1: 2008 Test Certificate Supplied (Sent Via Email) *Please Note Colour Can Vary To Picture* Chain shackles are also known as D-shackles, referring to their 'D' shape design. A d-shackle is narrower than a

Amazon

Safe Working Load - 1.5 Tonnes A=11MM B=13MM C=36MM D=18.5MM E=27MM Screw Pin : 7/16 x 1/2 Safety Factor: 5:1, Manufacturer: SecureFix Direct
