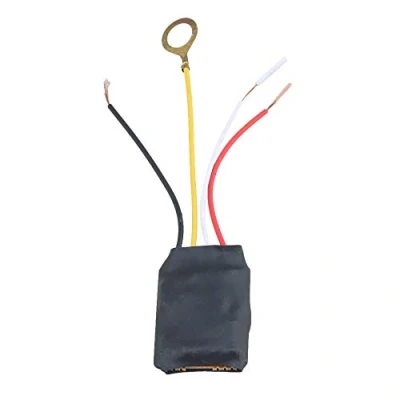

BQLZR AC 120V/240V 50Hz/60Hz Touch Lamp Desk Light 3 Way Sensor Switch Dimmer Repair 黑色

The last image is the wiring diagram,please check it. The last image is the wiring diagram,please check it. 3 levels: low, medium, high, then off Because the energy-saving lamps are not dimmable, the three-speed touch sensor is only suitable for ordinary light bulbs (within 60W), not suitable for energy-saving lamps and LED lamps. Not suitable for energy-saving lamps and LED lights, pls make sure this point before purchase Installation instructions: First, the red wire is connected to the live wire; the second black wire is connected to the neutral wire, which is a common neutral wire (all input and output neutral wires are connected); third, the white wire is connected to the live wire of the bulb; fourth, the yellow wire is connected to the lamp The metal part of the metal can be opened and closed by touching the metal Applicable to all kinds of lighting, can let the lamp have 3 kinds of luminosity can be selected at will, the installation is very simple and convenient., Weight: 0.0220462262 pounds, Manufacturer: BQLZR
