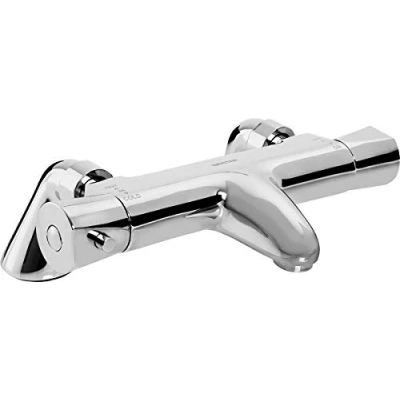

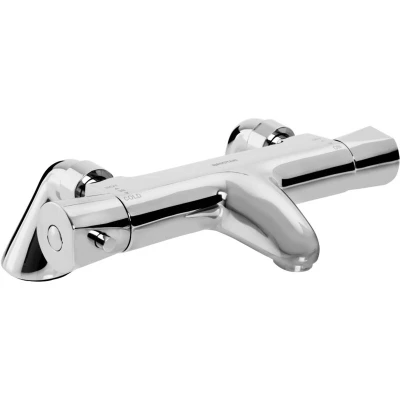

Bristan AR2 THBF C Artisan Thermostatic Bath Mixer Tap

Thermostatic bath filler with dual control for independent adjustment of flow and temperature. The pre-set maximum temperature is 38°C but can be overridden by the user. Built in brass construction with a chrome finish, it is designed for wall mounting using WMNT10 C and features a modern style. The model AR2-THBF-C includes thermostatic control for family safety and supports a wide working pressure range of 0.5 to 5 Bar. Flow rates increase with pressure, reaching up to 61.3 l/min at 5 Bar, with overall dimensions of 26 cm by 9 cm. The product is WRAS approved and ready for installation with compatible fittings; waste is sold separately where available.

Key features

Dual control for separate flow and temperature adjustment.

Pre-set maximum temperature 38°C, overridable by user.

Brass construction with chrome finish for durability.

Wall mounting compatibility with WMNT10 C.

Thermostatic control supports family safety.

WRAS approved; 0.5–5 Bar operating range.

Dimensions: 26 cm × 9 cm; flow rates scale with pressure.

Technical specifications

• Model AR2-THBF-C, Brass, Chrome finish
• Inlet: 3/4 BSP
• Working pressure: 0.5–5 Bar
• Flow: 0.5–5 Bar, up to 61.3 l/min at 5 Bar
• Dimensions: 26 cm × 9 cm
• Wall mount: WMNT10 C

Warning: The pre-set maximum temperature is 38°C and can be overridden by the user.
