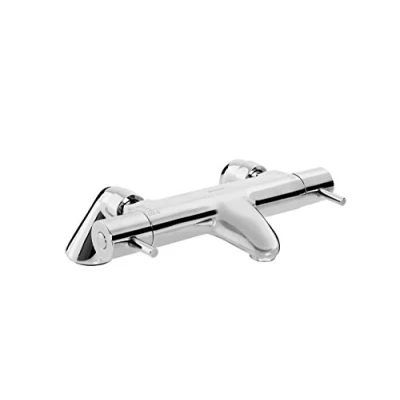

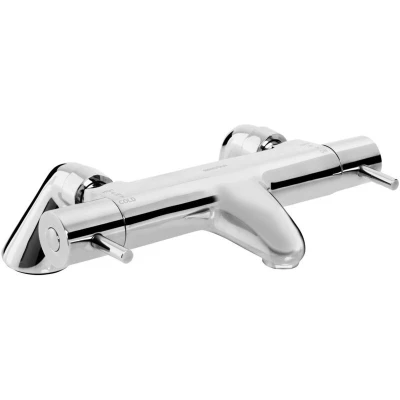

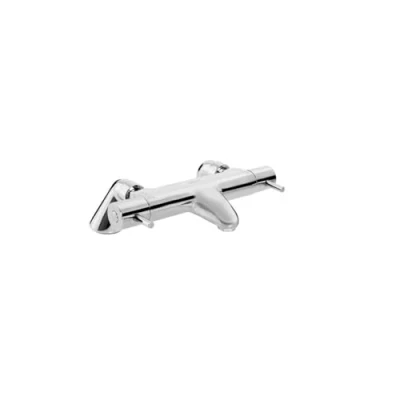

Bristan AR2 THLBF C Artisan long lever thermostatic bath mixer Tap

General description Thermostatic control for bath with dual control for flow and temperature. The Bristan AR2 THLBF C Artisan Thermostatic Lever Handle Bath Filler in Chrome features a pre-set maximum temperature of 38°C, which can be overridden by the user. It is designed for wall mounting using WMNT10 C and is constructed from durable brass. Technical specifications Model Number: AR2-THLBF-C Dimensions: 26cm x 11cm Minimum working pressure: 0.5 bar Maximum pressure: 5.0 bar Flow Rate @ 0.5 Bar: 19.4 l/min Flow Rate @ 1.0 Bar: 27.4 l/min Flow Rate @ 2.0 Bar: 38.8 l/min Flow Rate @ 3.0 Bar: 47.5 l/min Flow Rate @ 5.0 Bar: 61.3 l/min Tap Height: 108mm Base to Spout: 38mm Inlet Connection Size: 3/4 BSP Inlet Centres: 180mm Material: Brass Colour: Chrome Tap Handle(s): 2 Tap Hole(s): 2 Tap Head Shape: Lever Tap Valve Type: Thermostatic Collection: Artisan Style: Modern Market: Domestic System Suitability: Balanced EAN Barcode: 5014868027036 Compatibility and accessories Can be wall
