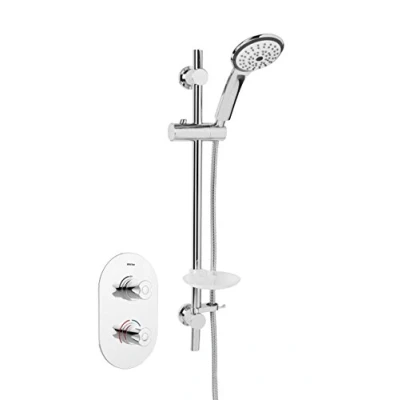

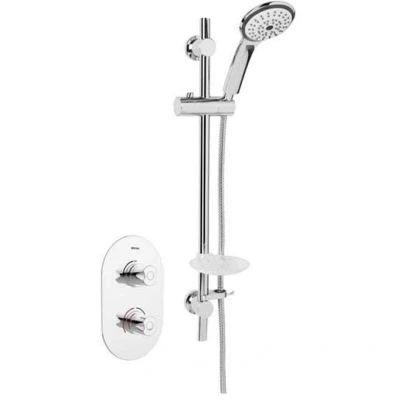

Bristan AR3 SHCMT C Artisan Recessed Thermostatic Dual Shower Valve with Kit - Chrome

The Bristan Artisan Thermostatic Recessed Dual Control Shower Valve and Kit in Chrome is part of Bristan’s Artisan range. It features a thermostatic, concealed dual-control valve with a single outlet, finished in chrome. The unit is designed for UK wall installation and is fully serviceable from the front, with adjustable brackets on the riser rail to suit varying cavity depths. It is built from brass and meets WRAS approval, offering reliable performance within listed temperature and pressure ranges.

Features

• Thermostatic recessed dual control
• Concealed installation with front serviceability
• Adjustable fixing brackets on riser rail
• Brass construction, chrome finish
• 1 outlet, 2 controls
• WRAS approved

Technical specifications

• Inlet connections: 15mm
• Suitable for wall cavities 45–75mm
• Minimum cold water: 4°C; maximum hot water: 80°C
• Minimum pressure: 0.2 Bar; maximum: 5.0 Bar
• Flow rates: 6.3–31.5 l/min (0.2–5 bar)
• Dimensions: 17 cm x 12 cm x 65 cm
