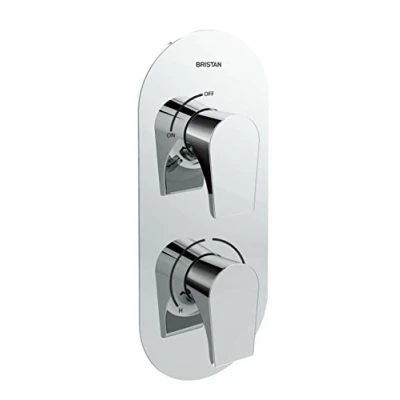

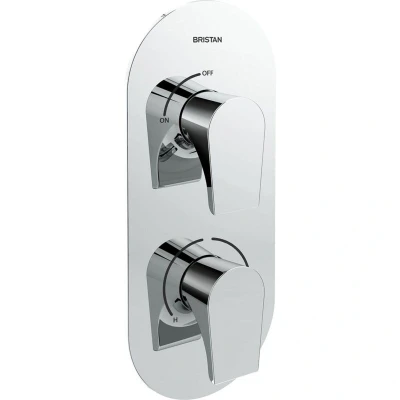

Bristan HOU SHCVO C Hourglass Recessed Dual Control Shower Valve, Chrome

ManoMano

General description This Bristan Hourglass Recessed Dual Control Shower Valve is designed for easy installation in any UK wall cavity, requiring only a 35mm deep cavity space. It features a modern chrome finish and is equipped with ceramic disc technology for durability and ease of use. The valve controls water flow to one outlet and includes a wall outlet for convenience. Technical specifications Inlet connection size: 15mm Outlet connection size: 150mm Shower valve height: 240mm Shower valve width: 100mm Shower valve depth: 60mm Minimum cold water supply temperature: 4°C Maximum hot water supply temperature: 80°C Minimum pressure: 0.2 Bar Maximum pressure: 5.0 Bar Flow rate at 0.2 Bar: 7.5 l/min Flow rate at 0.5 Bar: 14.1 l/min Flow rate at 1.0 Bar: 21 l/min Flow rate at 2.0 Bar: 30.5 l/min Flow rate at 3.0 Bar: 37.4 l/min Flow rate at 5.0 Bar: 48.2 l/min WRAS Approval Number: 2405900 Brand: Bristan Collection: Hourglass EAN Barcode: 5014868044989 Manufacturer Part Number:

Amazon

15mm inlet connections This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space Fitting depth including plasterboard and tiles is 60mm - 75mm, Weight: 4.916308442600001 pounds, Manufacturer: Bristan
