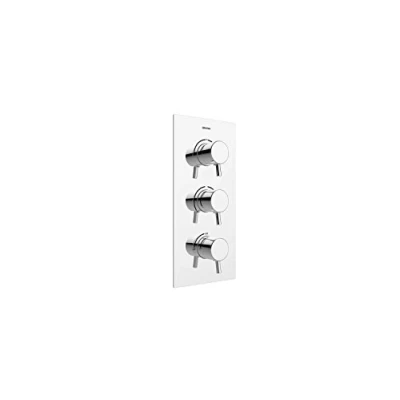

Bristan Prism Recessed Thermostatic Dual Control Shower Valve PM2-SHC3DIV-C - Chrome

The Bristan Prism 2 SHC3DIV Chrome Shower Mixer is a modern valve designed for UK wall cavities. It features a chrome-finished brass body, is fully serviceable from the front, and includes an integral two-outlet diverter with a single stopcock for versatile water flow to three outlets. The shower valve fits in cavities with a deep space of 45–75 mm (including plasterboard and tiles), and is compatible with 15 mm inlet and outlet connections. Technical and installation details are provided to ensure proper performance and maintenance.

Features

• Fully serviceable from the front
• Integral two-outlet diverter and single stopcock
• 15 mm inlet and outlet connections
• Designed for UK wall cavities with 45–75 mm fitting depth
• Brass construction with chrome finish

Technical specifications

• Model PM2-SHC3DIV-C
• Dimensions 17 cm × 11 cm × 36 cm
• Inlet/outlet connections: 15 mm
• Connection centres: 150 mm
• Cold water min 4°C; hot water max 80°C; min pressure 0.2 Bar; max pressure 5.0 Bar
• WRAS Approval Number: 2005900; material: Brass; finish: Chrome
