CA 150 MD E 0000016163
Description
ManoMano

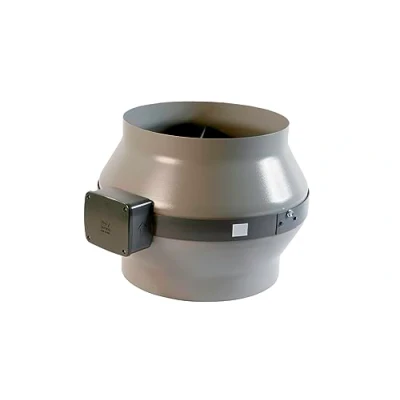

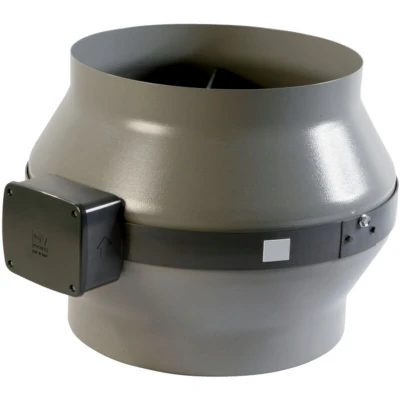

Dimensions and technical details 220-240 V ~ 50 Hz Centrifugal inline fan with mounting brackets Housing colour: hammered grey Housing material: phosphated steel, polyester powder coating Nominal width: 150 mm Speeds: 3 Motor wattage: 26 / 47 / 85 W Current consumption: 0.22 / 0.3 / 0.38 A Revolutions per minute: 1160 / 1725 / 2650 Airflow rate: 230 / 350 / 535 m3/h Total pressure Pmax: 121 / 248.7 / 435.1 Pa Max. sound pressure level Lp-3m: 53.2 dB(A) Max. temperature for continuous operation: 50°C Protection code: IP44 Insulation class: II Diameter duct connection: 147 mm Diameter without terminal box: 347 mm Diameter with terminal box: 424 mm Total depth: 275 mm Weight: 4.9 kg Thermal overload protection Ball-bearing external rotor motor
Description
(2)
Dimensions and technical details 220-240 V ~ 50 Hz Centrifugal inline fan with mounting brackets Housing colour: hammered grey Housing material: phosphated steel, polyester powder coating Nominal width: 150 mm Speeds: 3 Motor wattage: 26 / 47 / 85 W Current consumption: 0.22 / 0.3 / 0.38 A Revolutions per minute: 1160 / 1725 / 2650 Airflow rate: 230 / 350 / 535 m3/h Total pressure Pmax: 121 / 248.7 / 435.1 Pa Max. sound pressure level Lp-3m: 53.2 dB(A) Max. temperature for continuous operation: 50°C Protection code: IP44 Insulation class: II Diameter duct connection: 147 mm Diameter without terminal box: 347 mm Diameter with terminal box: 424 mm Total depth: 275 mm Weight: 4.9 kg Thermal overload protection Ball-bearing external rotor motor
AmazonCA 150 MD E 0000016163
Product specifications
