CA 200 MD E 0000016165
Description
ManoMano

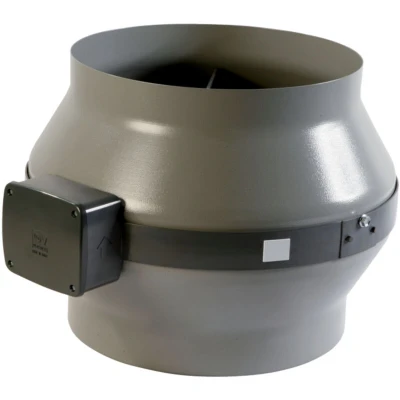

Dimensions and technical details 220-240 V ~ 50 Hz Centrifugal inline fan with mounting brackets Housing colour: hammered grey Housing material: phosphated steel, polyester powder coating Nominal width: 200 mm Speeds: 3 Motor wattage: 39 / 57 / 89 W Current consumption: 0.35 / 0.38 / 0.43 A Revolutions per minute: 1440 / 2140 / 2630 Airflow rate: 412 / 620 / 775 m3/h Total pressure Pmax: 353 / 441 / 441 Pa Max. sound pressure level Lp-3m: 48.1 dB(A) Max. temperature for continuous operation: 50°C Protection code: IP44 Insulation class: II Diameter duct connection: 197 mm Diameter without terminal box: 347 mm Diameter with terminal box: 424 mm Total depth: 275 mm Weight: 4.8 kg Thermal overload protection Ball-bearing external rotor motor
Description
(2)
Dimensions and technical details 220-240 V ~ 50 Hz Centrifugal inline fan with mounting brackets Housing colour: hammered grey Housing material: phosphated steel, polyester powder coating Nominal width: 200 mm Speeds: 3 Motor wattage: 39 / 57 / 89 W Current consumption: 0.35 / 0.38 / 0.43 A Revolutions per minute: 1440 / 2140 / 2630 Airflow rate: 412 / 620 / 775 m3/h Total pressure Pmax: 353 / 441 / 441 Pa Max. sound pressure level Lp-3m: 48.1 dB(A) Max. temperature for continuous operation: 50°C Protection code: IP44 Insulation class: II Diameter duct connection: 197 mm Diameter without terminal box: 347 mm Diameter with terminal box: 424 mm Total depth: 275 mm Weight: 4.8 kg Thermal overload protection Ball-bearing external rotor motor
