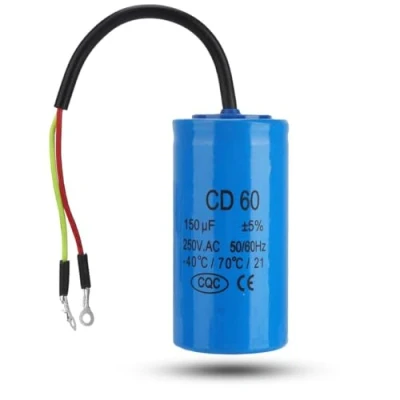

Capacitor, Jadeshay Run Capacitor CD60 Starting 250V 150uF 50/60Hz 1pc Start Motor Switching Capacitor,for Air Compressor

1. 【APPLICATION】: A professional starting capacitor, a precision electronic component, is widely used for single-phase motors with starting frequencies of 50Hz and 60Hz, such as air conditioners, compressors and motors. 2. 【PARAMETERS】: Capacity: 150uf, tolerance: ± 5%, rated voltage: 250V AC, frequency: 50/60Hz, size: 50 × 101MM, packaging weight: about 196g, standard process, suitable for more equipment working environment. 3. 【SAFETY】: Solid structure, strong pressure bearing, reliable insulation performance of AC capacitor, excellent electrical performance, and safe explosion-proof device. Good current impact resistance and overload capacity. 4. 【FLEXIBLE】: Light in weight and small in size, this CD60 startup capacitor is easy to move and adjust the connection position, convenient for accurate installation and easy disassembly, responsive, and greatly improves the work efficiency. 5. 【MATERIAL】: The dielectric material is metallized polypropylene film, and the shell material is plastic. The metallized polypropylene film roller structure improves the performance of the capacitor, with heat resistance, low leakage, low loss, and low impedance., Manufacturer: Jadeshay
