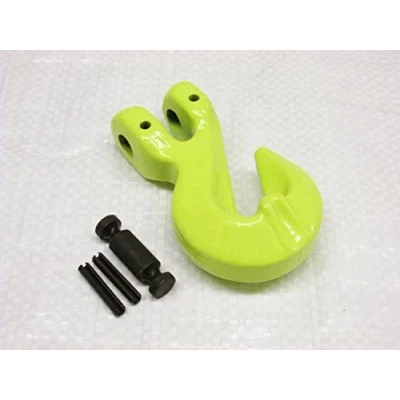

Clevis Grab Hook 10MM Grade 100 4 Ton (Shortener Clutch Chain Hook)

ManoMano

General description Clevis Grab Hook designed for 10MM chain size, made from high-quality Grade 100 material. This hook is primarily used in the lifting gear industry for chain slings, allowing for efficient shortening of chains to meet specific lifting requirements. The product features a light green finish, although the color may vary. Technical specifications Material: Grade 100 Factory of Safety: 4:1 Conforms to: ASTM A952 Available Product Codes and Specifications: Product Code: SFG10CGH06 - SWL: 1.5 Tonne, A: 45 MM, B: 17 MM, C: 8 MM, D: 8 MM, E: 25.5 MM, F: 74 MM, G: 8 MM, H: 7.5 MM Product Code: SFG10CGH08 - SWL: 2.5 Tonne, A: 53 MM, B: 20 MM, C: 11 MM, D: 9 MM, E: 30 MM, F: 91 MM, G: 9.5 MM, H: 10.5 MM Product Code: SFG10CGH10 - SWL: 4 Tonne, A: 73 MM, B: 30 MM, C: 12.5 MM, D: 11.5 MM, E: 42 MM, F: 123 MM, G: 13 MM, H: 13 MM Product Code: SFG10CGH13 - SWL: 6.7 Tonne, A: 91 MM, B: 44 MM, C: 16 MM, D: 14.5 MM, E: 56 MM, F: 162 MM, G: 16 MM, H: 14.5 MM Product Code: SFG10CGH16

Amazon

Suits Chain Size - 10MM Safe Working Load - 4 Ton Material - Grade 100 (G10) Finish - Light Green (May Vary) A = 73MM B = 30MM C = 12.5MM D = 11.5MM E = 42MM F = 123MM G = 13MM H = 13MM
