Connect 34226 Assorted AdBlue® Straight & Angled Quick Connectors 18pc

Name: Connect 34226 Assorted AdBlue® Straight & Angled Quick Connectors 18pc
Brand: Connect
SKU: 8924c67fda85cc26a7bb6285c6b89ccc

1/1

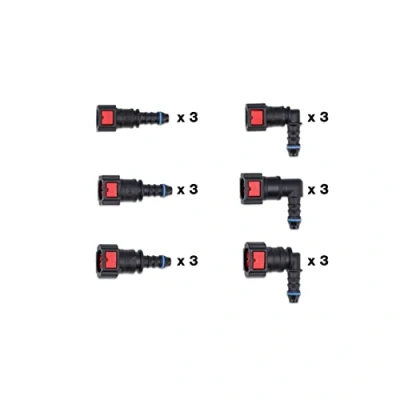

Image of Connect 34226 Assorted AdBlue® Straight & Angled Quick Connectors 18pc

Amazon Marketplace

Prices from

56.09

Description

Amazon 90° angled connectors for AdBlue, sizes: 9.49mm x 6mm, 7.89mm x 6mm & 6.3mm x 6mm. Straight connectors for AdBlue, sizes: 9.49 x 6mm, 7.89 x 6mm & 6.3 x 6mm. Constant running pressure: 7 bar (101psi); max pressure: 9 bar (130psi). Operating temperature: -40°C to 70°C. Body manufactured from nylon PA12; O-ring from EPDM seal. Made to SAE J2044-2009 standards. Red tab for AdBlue identification (note: standard fuel connectors have grey tabs). Top up packs available (3pc). For angled quick connectors, please see Connect Part Nos. 34241 (6.3 x 6mm), 34243 (7.89 x 6mm), 34247 (9.49 x 6mm); for straight quick connectors, Part Nos. 34240 (6.3 x 6mm), 34242 (7.89 x 6mm), 34246 (9.49 x 6mm).

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 56.09

Description (1)

90° angled connectors for AdBlue, sizes: 9.49mm x 6mm, 7.89mm x 6mm & 6.3mm x 6mm. Straight connectors for AdBlue, sizes: 9.49 x 6mm, 7.89 x 6mm & 6.3 x 6mm. Constant running pressure: 7 bar (101psi); max pressure: 9 bar (130psi). Operating temperature: -40°C to 70°C. Body manufactured from nylon PA12; O-ring from EPDM seal. Made to SAE J2044-2009 standards. Red tab for AdBlue identification (note: standard fuel connectors have grey tabs). Top up packs available (3pc). For angled quick connectors, please see Connect Part Nos. 34241 (6.3 x 6mm), 34243 (7.89 x 6mm), 34247 (9.49 x 6mm); for straight quick connectors, Part Nos. 34240 (6.3 x 6mm), 34242 (7.89 x 6mm), 34246 (9.49 x 6mm).
