Connect 34228 Assorted 90 Angled AdBlue® Quick Connectors 15pc

Name: Connect 34228 Assorted 90 Angled AdBlue® Quick Connectors 15pc
Brand: Connect
SKU: 3e915832fa25ee17a362b6cebb0fd5d8

1/1

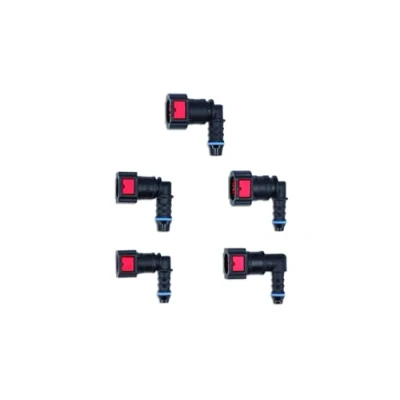

Image of Connect 34228 Assorted 90 Angled AdBlue® Quick Connectors 15pc

Amazon

Prices from

53.06

Featured

	£ 53.06	To Shop
	£ 53.06	To Shop
COMPARE ALL WEBSHOPS (2)

Description

Amazon 90° angled connectors for AdBlue, sizes: 9.49 x 6mm, 7.89 x 6mm, 6.3 x 6mm, 9.49 x 8mm, 7.89 x 8mm. Constant running pressure: 7 bar (101psi); max pressure: 9 bar (130psi). Operating temperature: -40°C to 70°C. Body manufactured from nylon PA12; O-ring from EPDM seal. Made to SAE J2044-2009 standards. Red tab for AdBlue identification (note: standard fuel connectors have grey tabs). Top up packs available (3pc), see Part Nos. 34241 (6.3 x 6mm), 34243 (7.89 x 6mm), 34245 (7.89 x 8mm), 34247 (9.49 x 6mm), 34249 (9.49 x 8mm).

Compare webshops (2)

Shop

Price

£ 53.06

To Shop

£ 53.06

To Shop

Description (1)

90° angled connectors for AdBlue, sizes: 9.49 x 6mm, 7.89 x 6mm, 6.3 x 6mm, 9.49 x 8mm, 7.89 x 8mm. Constant running pressure: 7 bar (101psi); max pressure: 9 bar (130psi). Operating temperature: -40°C to 70°C. Body manufactured from nylon PA12; O-ring from EPDM seal. Made to SAE J2044-2009 standards. Red tab for AdBlue identification (note: standard fuel connectors have grey tabs). Top up packs available (3pc), see Part Nos. 34241 (6.3 x 6mm), 34243 (7.89 x 6mm), 34245 (7.89 x 8mm), 34247 (9.49 x 6mm), 34249 (9.49 x 8mm).
