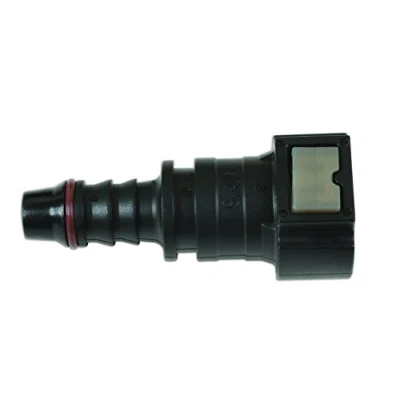

Connect 37215 Fuel Line Straight Quick Connector 9.49mm x 8mm 3pc, Grey

ManoMano

A set of 3 different sized straight fuel line Quick connectors allowing for tight connections on 8mm fuel lines. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected and disconnected with ease and speed, with the wIDe operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks. To ease the fitting of the hard plastic fuel pipe to the connectors, use Laser Tools Pipe Connector Insertion Tool, Part No. 6933. Straight connectors, suits: 8mm ID nylon pipe; 7.5mm ID Rubber hose. Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40�C to 120�C. Body manufactured from nylon PA12; O-ring from FKM seal (Viton). Made to SAE J2044-220908 standards. Grey tab for fuel identification (note: AdBlue� specific connectors have red tabs). Included in assorted boxes of straight quick

Amazon

Straight Fuel Line Connector from 37011 Assorted Box Suits 8mm ID Nylon Pipe and 75mm ID Rubber Hose Material - Nylon PA12 Viton seals Grey tab for fuel identification Maximum Working Pressure 5 Bar 3pc
