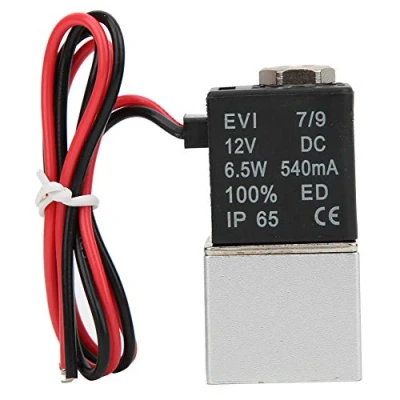

Direct Acting Solenoid Valve 2 Position Way Aluminum Alloy Quick Response Water Air Oil Pneumatic Control Valves DC12V 6W(G1/8")

The direct-acting solenoid valve is suitable for a variety of media, such as water, air and oil, and has stable operation and excellent performance during use. The body Material of the fast response solenoid valve is aluminum alloy, IP65 waterproof and dustproof, and the valve is more reliable to use. The operating temperature range is -10 ~ + 80 ° C, and the wide operating temperature range is suitable for more applications. We strive to provide you with high quality and convenient service. You are welcome to contact us if you have any problem about our product, we will give you a satisfactory reply. Flowing Aperture: 2.5,CV Value: 0.23,Fluid Viscosity :< 20CST,Working Pressure:0~1Mpa,Maximum Pressure Resistance: 1.2MPa,Connector Diameter and Thread Size: G1/8in 8.5mm, G1/4in 12mm(Optional),Insulation: Class F,Oil Seal Material: NBR Or VITONS, NBR,Minimum Excitation Time: 0.05/Second.
