Distribution Box IP54 DARP 72 3 x 24 Flush Mounted Aluminium Door Lower 9.324 E P 6750, Clage

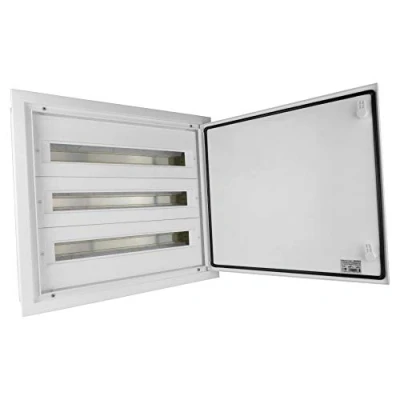

Number of modules: 72 (3 x 24); number of rows: 3; mounting: flush-mounted; protection class: II; distance between bottom and TH rail: 29 mm Un: 230/400V; Plain: 690V; In: 63A; door/door frame: aluminium white (RAL 9010); easy access to insulated N + PE rails Clamps PE / PE mm2: 1x(1x25+9x16), 2x(12X10+11X16); terminals N (mm2): 4x(1x25+9x16) Casing material: plastic; housing colour: white (RAL 9010); door colour: aluminium white coated Cable diameter: 25 mm²; working temperature: from -25 °C to +55 °C; IK: 07; max. Mounting width: 125 mm; removable rails DIN (TH/TS 35) on a sledge (please take a look at the picture), Manufacturer: Elektro-Plast
