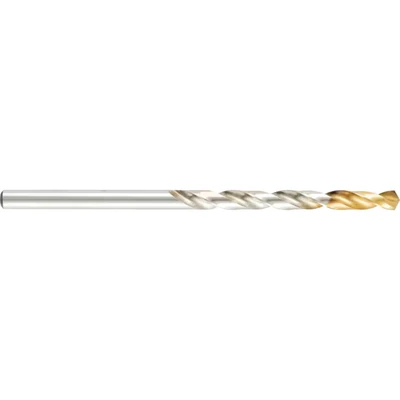

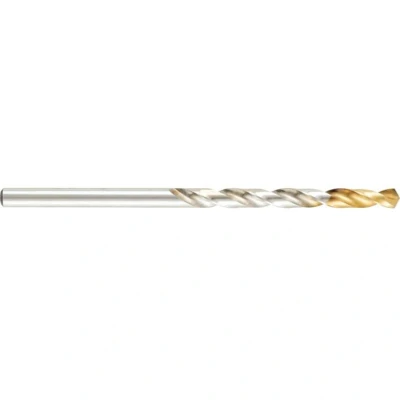

Dormer A002 4.10MM HSS Straight Shank Jobber Drills TiN Tipped

ManoMano

General description This high-speed steel (HSS) twist drill bit features a Titanium Nitride (TiN) coating for enhanced durability and performance. The Dormer A002 TiN Jobber Drill Bit is designed for precise drilling in a variety of materials including steel, stainless steel, cast iron, ceramics, plastics, and wood. It offers superb hole quality and positional accuracy thanks to its self-centering split point design. Technical specifications Diameter: 4.1 mm Total length: 75 mm Cutting length: 43 mm Shank type: Cylindrical Material: HSS with TiN coating Angle: 118° Maximum cutting depth: 4 times the diameter (4XD) Nominal tolerance: h8 Model: A002 Cutting direction: Right Feed rate in steel up to 800 N: 0.08 mm/W Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for drilling in steel, cast iron, and other metals Installation Insert the drill bit into a compatible drill chuck Secure tightly to prevent slipping during operation Usage Use

Amazon

118 degree split point - helps with self-centering when used by hand, reduces the push force required Titanium nitride coating - Increases service life of the drill, improves performance when drilling harder materials Improved accuracy - with more accurate holes and a better quality of finish Premium HSS material - Can be used for drilling many materials including steels, aluminium, stainless steel Versatile product - Can be used in many different hand held and machine applications

Power Tools Direct

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 4.10mm.Working length: 43mm.Overall length: 75mm.PTDDOR410TIN
