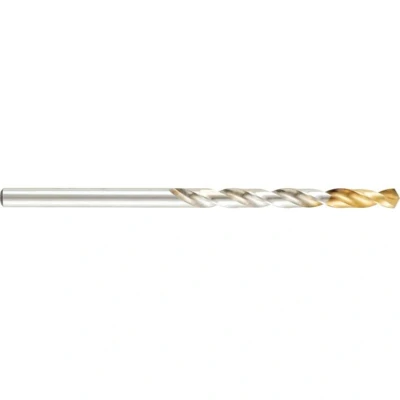

Dormer A002 HSS TiN Coated Jobber Drill 3.20mm OL65mm WL36mm DOR320TIN

General description This is a versatile Dormer A002 HSS-TiN coated jobber drill bit, suitable for various drilling tasks in steel, stainless steel, cast iron, ceramics, plastics, and other materials. It features a TiN tip coating for enhanced durability and performance, making it ideal for both professional and DIY use. Technical specifications Tip diameter: 3.20 mm Working length: 36 mm Overall length: 65 mm Cutting angle: 118° Cutting profile: Cross-cut Shank type: Cylindrical Cutting direction: Right Perforation depth: Up to 4 times the diameter (4XD) Nominal tolerance: h8 Model: A002 Material: High Speed Steel Suitable for steel up to 800 N in feed force Compatibility and accessories Compatible with standard drill chucks Suitable for use with drill machines designed for metal drilling Installation Insert the shank into the drill chuck securely Ensure the drill is set to the appropriate speed for metal drilling Usage Use with steady pressure to ensure accurate drilling Apply

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 3.20mm.Working length: 36mm.Overall length: 65mm.PTDDOR320TIN
